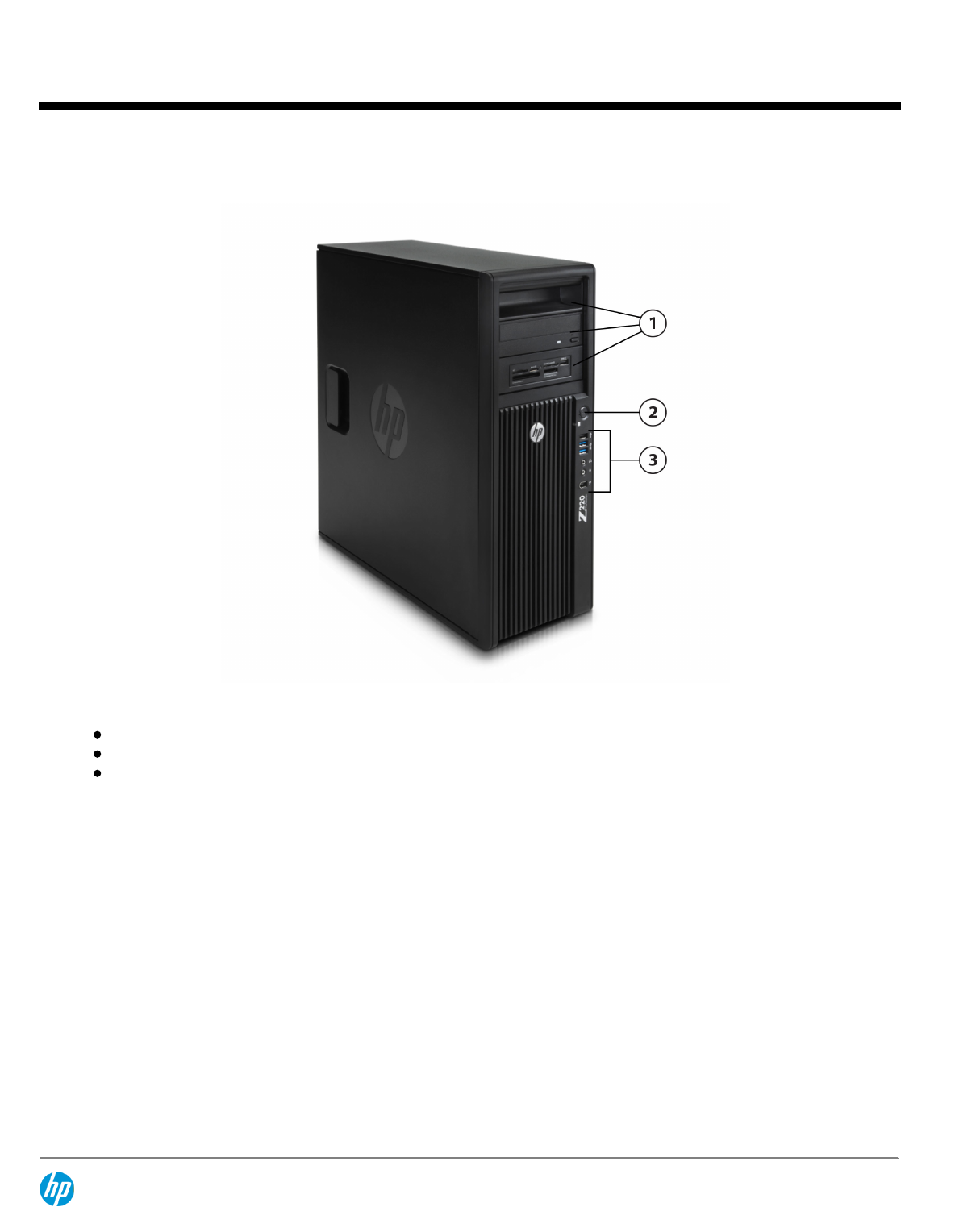

QuickSpecs HP Z220 CMT Workstation Overview 1. 3 External 5.25” bays; in top to bottom order: HP Z220 CMT handle (optional) DVD-RW optical drive (optional) 22-in-1 Media Card Reader (optional) 2. Power button 3. Front I/O (in top to bottom order): 1 USB 2.0 port, 2 USB 3.0 (blue) ports, Headphone, Microphone, optional IEEE 1394a port.
QuickSpecs HP Z220 CMT Workstation Overview 1. 2. 3. 4. 5. PS/2 ports (keyboard, mouse) 1 DVI-I single link, 1 DisplayPort (DP 1.1) output from Intel HD graphics (available on selected processors only) RJ-45 to integrated GBE 2 USB 3.0, 4 USB 2.
QuickSpecs HP Z220 CMT Workstation Overview Genuine Windows® XP Professional 32/64 (on select configurations)* * See the “Windows XP Support Matrix for Z Workstations” at: http://www.hp.
QuickSpecs HP Z220 CMT Workstation Overview Intel® Pentium® Intel HD 2 2.9 N/A 3 1333 N N 55W G2020 processor Graphics 1The specifications shown in this column represent the maximum turbo frequency with one core active. Turbo boost stepping occurs in 100MHz increments. Processors that do not have turbo functionality are denoted as N/A. Available Processor Integrated Intel® HD graphics is not supported on the Intel Xeon processor E3-1230v2, E3-1240v2, E31270v2, E3-1280v2 or E3-1290v2.
QuickSpecs HP Z220 CMT Workstation Overview Temperature Humidity Maximum Altitude (nonpressurized) Power Supply Backup Devices Chipset Memory Memory disclaimers Workstation ISV Certifications * Typical weight when configured with 1 3.
QuickSpecs HP Z220 CMT Workstation Supported Components Processors Factory Option Configured Kit Option Kit Part Number Support Notes Intel® Xeon® processor E3 v2 family (Z220) Intel® Xeon® processor E3-1290v2, Quad-Core, 8 MB cache, 3.7 GHz, up to 4.1 GHz with Intel Turbo Boost Technology Intel® Xeon® processor E3-1280v2, Quad-Core, 8 MB cache, 3.6 GHz, up to 4.0 GHz with Intel Turbo Boost Technology Intel® Xeon® processor E3-1270v2, Quad-Core, 8 MB cache, 3.5 GHz, up to 3.
QuickSpecs HP Z220 CMT Workstation Supported Components Monitors / Displays Factory Option Configured Kit Option Kit Part Number Support Notes Factory Option Configured Kit Option Kit Part Number Support Notes HP DreamColor LP2480zx Professional Display HP ZR30w 30-inch S-IPS LCD Monitor HP ZR2740w 27-inch LED Backlit IPS Monitor HP ZR24w 24-inch S-IPS LCD Monitor HP ZR2440w 24-inch LED Backlit IPS Monitor HP ZR2240w 21.
QuickSpecs HP Z220 CMT Workstation Supported Components Hard Drive Controllers Factory Option Configured Kit Option Kit Part Number Support Notes Integrated SATA Controller (Z220) Integrated SATA Controller (CMT), RAID 0,1 supported: 4 ports 3 Gb/s, 2 ports 6 Gb/s Factory integrated RAID on motherboard for SATA drives Y N RAID 0 Data Configuration -- Boot/OS Drive + 2 Drive Striped N N Array RAID 0 Configuration - Striped Array Y N RAID 1 Configuration - Mirrored Array Y N SATA hardware RAID is not
QuickSpecs HP Z220 CMT Workstation Supported Components graphics on this part is branded as Intel HD Graphics, it is similar to Intel HD Graphics 2000 but lacks some premium media capabilities.
QuickSpecs HP Z220 CMT Workstation Supported Components Graphics Cable Adapters Factory Option Configured Kit Option Kit Part Number Supported Support Notes # of cards Mixed? Graphics Cable Adapters Memory HP DisplayPort To DVI-D Adapter (2Pack) HP DisplayPort To VGA Adapter 2nd HP DisplayPort To DVI-D Adapter (4Pack) HP DisplayPort To DVI-D Adapter (6Pack) Y N 1 Y Y N N 1 1 Y N 1 HP DisplayPort To VGA Adapter HP DisplayPort To DVI-D Adapter HP DisplayPort to Dual Link DVI Adapter Y Y Y Y
QuickSpecs HP Z220 CMT Workstation Supported Components Two channels of DDR3 memory are supported. To realize full performance at least one DIMM must be inserted into each channel. The CPUs determine the speed at which the memory is clocked. If a 1066 MHz capable CPU is used in the system, the maximum speed the memory will run at is 1066 MHz regardless of the specified speed of the memory.
QuickSpecs HP Z220 CMT Workstation Supported Components Controller Cards Factory Option Configured Kit HP IEEE 1394b FireWire PCIe Card Support Notes NK653AA See Note 1 HP USB 3.0 2x2 Port SuperSpeed PCIe x1 Card N Y QT587AA See Note 2 NOTE 1: For the HP Z220 CMT Workstation the 1394b card is only supported on Slots 3, 4, or 5. NOTE 2: Four USB 3.0 ports are available integrated on the motherboard (2 front, 2 rear). Integrated USB 3.0 ports are supported under Windows 7 operating system only. The USB 3.
QuickSpecs HP Z220 CMT Workstation Supported Components Input Devices Option Kit Factory Part Support Configured Option Kit Number Notes HP SpacePilot 3D USB Intelligent Controller HP SpaceExplorer 3D USB Controller HP USB Optical 3-Button Mouse HP 2.
QuickSpecs HP Z220 CMT Workstation Supported Components Software Option Kit Factory Part Configured Option Kit Number HP Performance Advisor Y N HP ProtectTools Security Y N PDF Complete - Corporate Edition Cyberlink PowerDVD / Power2Go Y Y N N MS Office Home & Business 2013 Y N Operating Systems Support Notes Supports Windows 7 only. Available as a download from hp.com or preinstalled with every Windows 7 order. Must be selected as a Configure to Order option.
QuickSpecs HP Z220 CMT Workstation System Technical Specifications System Board System Board Form Factor ATX 244 x 305 mm (9.6 x 12 inches) Processor Socket Single LGA-1155 CPU Bus Speed DMI Chipset Intel® PCH C216 Memory Expansion Slots 4 DDR3 memory slots Memory Type Supported DDR3, UDIMM (Unbuffered), ECC& non-ECC Memory Modes Non-Interleaved for single channel. Interleaved when both channels are populated.
QuickSpecs HP Z220 CMT Workstation System Technical Specifications Network Controller IDE connector Integrated Gbit LAN MAC by Intel PHY Lewisville 82579LM. Management capabilities: WOL, PXE 2.1 and AMT 8 1 port eSATA capable (SATA 5) with optional eSATA AfterMarket Option cable kit.
QuickSpecs HP Z220 CMT Workstation System Technical Specifications Rated Line Frequency 50-60 Hz Operating Line Frequency 47-66 Hz Range Rated Input Current 5.
QuickSpecs HP Z220 CMT Workstation System Technical Specifications Example Configuration #2 Processor Info 1x Intel Xeon E3-1280v2 3.6 8MB 4C HT 69W GT0 CPU Memory Info 4GB (2x 2GB) 1600 MHz DDR3 ECC Graphics Info 1x NVIDIA Quadro 600 1GB Graphics Disks/Optical/Floppy 2x SATA 2 TB 7.2k rpm/ 2 Optical PSU 400W 90% OS /BIOS Win7 64/v 0.
QuickSpecs HP Z220 CMT Workstation System Technical Specifications Energy Consumption 115 VAC LAN Enabled Windows Idle (S0) Windows Busy Typ (S0) Windows Busy Max (S0) Sleep (S3) Off (S5) Zero Power Mode (EuP) Heat Dissipation** Windows Busy Typ (S0) Windows Busy Max (S0) Sleep (S3) Off (S5) Zero Power Mode (EuP) LAN Disabled 65.3 W 185.7 W 260.3 W 3.57 W 3.34 W 1.15 W 0.98 W 0.22 W 115 VAC LAN Enabled Windows Idle (S0) 230 VAC LAN Disabled 222.8 btu/hr LAN Enabled 100 VAC LAN Disabled 64.
QuickSpecs HP Z220 CMT Workstation System Technical Specifications System Configuration (High-end) Processor Info Intel Xeon E3-1290v2 3.
QuickSpecs HP Z220 CMT Workstation System Technical Specifications Green User Touch Points Yes, on tool-free internal chassis mechanisms Color-coordinated Cables Yes and Connectors Memory Tool-less System Board Screw-In Dual Color Power and HD Yes LED on Front of Computer Configuration Record SW Yes Over-Temp Warning on Screen Yes Restore CD/DVD Set Restores the system to the factory shipped operating system.
QuickSpecs HP Z220 CMT Workstation System Technical Specifications Front Power LED Yes, blue (normal), red (fault) Front Hard Drive Activity Yes, green LED Front ODD Activity LED Yes Internal Speaker Yes System/Emergency ROM Flash Recovery Recovers corrupted system BIOS.
QuickSpecs HP Z220 CMT Workstation System Technical Specifications BIOS Boot Spec 1.01+ Provides more control over how and from what devices the workstation will boot. BIOS Power On Users can define a specific date and time for the system to power on. ROM Based Computer Setup Utility (F10) Review and customize system configuration settings controlled by the BIOS. System/Emergency ROM Recovers system BIOS in corrupted Flash ROM.
QuickSpecs HP Z220 CMT Workstation System Technical Specifications Localized ROM Setup Asset Tag Common BIOS image supports System Configuration Utility (F10 Setup) menus in 12 languages with local keyboard mappings. Enables the user or IT administrator to set a unique tag string in non-volatile memory. Per-slot Control Allows I/O slot parameters (option ROM enable/disable, bus latency) to be configured individually.
QuickSpecs HP Z220 CMT Workstation System Technical Specifications Social and Environmental Responsibility Eco-Label Certifications & This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks: Declarations Batteries ENERGY STAR® (energy-saving features available on selected configurations-Windows only) US Federal Energy Management Program (FEMP) China Energy Conservation Program IT ECO declaration The battery in this
QuickSpecs HP Z220 CMT Workstation System Technical Specifications Environment Does not contain ozone-depleting substances (ODS) Does not contain heavy metals (lead, mercury, cadmium or hexavalent chromium) in excess of 100 ppm sum total for all heavy metals listed Maximizes the use of post-consumer recycled content materials in packaging materials All packaging material is recyclable All packaging material is designed for ease of disassembly Reduced size and weight of packages to improve transportation f
QuickSpecs HP Z220 CMT Workstation System Technical Specifications Service, Support, and Warranty Program to proactively communicate Product Change Notifications (PCNs) and Customer Advisories by email to customers, based on a user-defined profile. PCNs provide advance notification of hardware and software changes to be implemented in the factory providing time to plan for transition. Customer Advisories provide concise, effective problem resolution, greatly reducing the need to call technical support.
QuickSpecs HP Z220 CMT Workstation Stable & Consistent Offerings Processors As part of its commitment to hardware, software, and solution innovation, HP is proud to introduce this breakthrough platform configuration stability to HP Workstation customers. HP Stable & Consistent Offerings are built on the foundation of a carefully chosen set of hardware and software designed and tested to work with all HP Z Workstation platforms through their end of life.
QuickSpecs HP Z220 CMT Workstation Stable & Consistent Offerings Operating Systems Product # Offering A3J50AV Genuine Windows® 7 Professional 64-bit DA - 14286 North America — Version 16 — August 15, 2013 Page 29
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Processors Processors Intel Xeon processor E3-1290v2, 3.70 GHz/4.1GHz, 87W, 8 MB cache, 1600 MHz memory, Quad-Core, HT, featuring Intel vPro Technology Intel® Xeon® processor E3-1280v2, 3.6/4.0 GHz, 69W, 8 MB cache, 1600 MHz memory, Quad-Core, HT, featuring Intel® vPro Technology Intel® Xeon® processor E3-1270v2, 3.5/3.9 GHz, 69W, 8 MB cache, 1600 MHz memory, Quad-Core, HT, featuring Intel® vPro Technology Intel® Xeon® processor E3-1245v2, 3.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Hard Drives SATA (Serial ATA) Hard Drives for HP Workstations 1TB SATA 7200 rpm 6Gb/s Capacity 3.5" HDD Height Width 500GB SATA 7200 rpm 6Gb/s 3.5" HDD 250GB SATA 7200 rpm 6Gb/s 3.5" HDD 1 Terabyte (1000 GB) 1 in; 2.54 cm Media Diameter 3.5 in; 8.9 cm Physical Size 4 in; 10.17 cm Interface Serial ATA (6.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Hard Drives 2.0TB SATA 7200 rpm 6Gb/s 3.5" HDD Seek Time (typical reads, includes controller overhead, including settling) Rotational Speed Single Track 2 ms Average 11 ms Full Stroke 21 ms Logical Blocks 488,397,168 Operating Temperature 41° to 131° F (5° to 55° C) Capacity 2TB Height 1 in; 2.54 cm Width Media Diameter 3.5 in; 8.9 cm Physical Size 4 in; 10.17 cm 7,200 rpm Interface Serial ATA (6.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Hard Drives HDD 1TB SATA 10K rpm SFF HDD Height 0.6 in; 1.53 cm Width Media Diameter 2.5 in; 6.36 cm Physical Size 2.75 in; 6.99 cm Interface Serial ATA (6Gb/s) Synchronous Transfer Rate (Maximum) Up to 600MB/s Buffer 64MB Cache Adaptive Seek Time (typical reads, includes controller overhead, including settling) Rotational Speed Single Track 1.2ms (typical) Average 3.6ms Full Stroke 9.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Hard Drives HP Solid State Drives (SSDs) for Workstations Seek Time (typical reads, includes controller overhead, including settling) Rotational Speed Single Track 1ms Average 4.2ms Full Stroke 25ms (typical) Operating Temperature 32° to 140° F (0° to 60° C) HP 128GB SATA 6Gb/s SSD Capacity 7,200 rpm 128GB Height 0.28 in; 0.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Graphics NVIDIA NVS 300 512MB Graphics Form Factor 2.7 inches (H) x 5.7 inches (L), Half-Height Graphics Controller NVIDIA NVS 300 Graphics Board Bus Type PCI Express x16, Generation 2.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Graphics Memory Connectors Size: 512MB DDR3 Clock: 875Mhz Memory Bandwidth: 14GB/s 2 x DisplayPort Maximum Resolution Up to 2560 x 1600 (digital display) per display. Image Quality Features The following video formats are supported: - MPEG2 - MPEG4 Part 2 Advanced Simple Profile - H.264 SVC codec support - Support for 3D Blu Ray - VC1 - DivX version 3.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Graphics Microsoft Windows XP Professional (64-bit and 32-bit) Red Hat Enterprise Linux(RHEL) SUSE Linux Enterprise Desktop 11 (64-bit and 32-bit) HP qualified drivers may be preloaded or the latest HP qualified drivers are available from the HP support Web site: http://welcome.hp.com/country/us/en/support.html Power Consumption NVIDIA NVS 510 2GB Graphics SUSE Linux Enterprise drivers may also be obtained from: ftp://download.nvidia.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Graphics 2. DVI-D Output - Drives four digital displays at resolutions up to 1920 × 1200 at 60 Hz with reduced blanking using DisplayPort to DVI-D single-link cable adaptors. - Drives four digital displays at resolutions up to 2560× 1600 at 60 Hz with reduced blanking using DisplayPort to DVI-D dual-link cable adaptors. 3.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Graphics Note AMD Eyefinity technology can support multiple displays using a single enabled AMD FirePro™ professional graphics card; the number of supported displays varies by card model. Microsoft® Windows® 7, Windows Vista®, or Linux® is required in order to support more than 2 displays.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Graphics Shading Architecture - Supports HBR2 and MST - Max resolution: 3840 x 2160 x 30 bpp @ 60 Hz (only one monitor can be connected to the Quadro K600 DisplayPort connector at this resolution) - Max number of daisy-chained monitors: 2 Full Microsoft DirectX 11 Shader Model 5.0 Supported Graphics APIs OpenGL 4.3 DirectX 11 API support includes: CUDA C, CUDA C++, DirectCompute 5.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Graphics Single-link DVI 1920 × 1200 × 32 bpp at 60 Hz (reduced blanking) DisplayPort 1.2 RAMDAC 3840 × 2160 × 36 bpp at 60 Hz 400 MHz integrated RAMDAC Display Output Maximum number of displays supported: 2 Shading Architecture Shader Model 5.0 Supported Graphics APIs DX11, OpenGL 4.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Graphics Maximum Resolution Image Quality Features Display Output DisplayPort: - up to 3840 x 2160 x 30 bpp @ 60Hz - supports High Bit Rate 2 (HBR2) and Multi-Stream Transport (MST) DL-DVI(I) output: - up to 2560 x 1600 x 32 bpp @ 60Hz 10-bit internal display processing pipeline 10-bit scan-out support VGA: - requires use of DVI-to-VGA and/or DP-to-VGA video cable adapters - 400 Mhz integrated RAMDAC - Max resolution: 2048 x 1536 x 32 bpp @ 8
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Graphics 1. Quadro K2000 offered as CTO does not include a video cable adapter. Video cable adapters must be ordered separately. 2. Quadro K2000 offered as AMO includes one DP-to-DVI video cable adapter. Additional cables must be ordered separately. Notes NVIDIA Quadro K4000 3GB Form Factor Graphics Graphics Controller 4.376" H x 9.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Graphics - Requires use of DP-to-HDMI cable - Max Resolution: 1920 x 1080 x 32 bpp @ 60Hz Shading Architecture Maximum number of monitors across all available Quadro K4000 outputs is 4. Full Microsoft DirectX 11 Shader Model 5.0 Supported Graphics APIs OpenGL 4.3 DirectX 11 API support includes: CUDA C, CUDA C++, DirectCompute 5.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Graphics AMD FirePro W7000 4GB Graphics Form Factor Full height, full length, single slot Graphics Controller Bus Type AMD FirePro™ W7000 Professional Graphics Max Power: <150 Watts PCI Express™ x16, Generation 3.0 Memory 4GB GDDR5, 153.6 GB/s bandwidth, ECC support Connectors 4 x DisplayPort with HBR2 and MST support.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Multimedia and Audio Devices HP Thin USB Powered Speakers Frequency Response (3dB, 24-bit/96kHz input) Dimensions (H x W x D) FO to 20kHz Speakers: 14.52 x 9.50 x 2.45 cm (5.72 x 3.74 x 0.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Optical and Removable Storage HP DVD-ROM Drive Description 5.25-inch, half-height, tray-load Mounting Orientation Either horizontal or vertical Interface Type SATA/ATAPI Dimensions (WxHxD) 15.0 x 4.4 x 20.3 cm (5.9 x 1.7 x 8.0 in) Disc Capacity DVD-ROM Access Times DVD-ROM Single Layer Single layer: Up to 4.7 GB Double layer: Up to 8.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Optical and Removable Storage Disc Capacity Maximum Data Transfer Rates CD-R CD-RW DVD-ROM 8.5 GB DL or 4.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Optical and Removable Storage Dimensions (WxHxD) 15.0 x 4.4 x 20.3 cm (5.9 x 1.7 x 8.0 in) Disc Formats BD-ROM BD-R BD-RE DVD-RAM DVD+R DVD+RW DVD+R DL DVD-R DL DVD-R DVD-RW CD-R CD-RW DVD-ROM 8.5 GB DL or 4.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Optical and Removable Storage Power Source DC Power Requirements DC Current Operating Environmental Temperature (all conditions nonRelative Humidity condensing) Maximum Wet Bulb Temperature Operating Systems Supported BD-R DL Up to 4.8X BD-R Up to 6X BD-RE SL/DL Up to 4.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Optical and Removable Storage HP 22-in-1 Media Card Reader Description Mounting Orientation Interface Type Dimensions (WxHxD) Disc Formats The Media Card Reader device uses the same physical form factor and mounting as a Floppy Disk Drive. The device connects to a 2x5 two-channel USB header on the motherboard of the system. There is no USB controller card provided.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Controller Cards HP IEEE 1394b FireWire PCIe Card Data Transfer Rate Supports up to 800 Mbps Devices Supported IEEE-1394 compliant devices Bus Type PCIe card full height PCIe slots Ports Two IEEE-1394b bilingual 9-Pin Connector (Rear) Internal Connectors One 10-Pin header Custom Connector System Requirements Windows 7 Professional 32-bit and 64-bit, Microsoft® Windows® XP Professional, Windows XP Home, Windows Vista, SLED 11 and RHE
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Networking and Communications Integrated Intel 82579LM Connector PCIe GbE Controller Controller RJ-45 Intel 82579LM GbE platform LAN connect networking controller Memory 24 KB FIFO packet buffer memory Data Rates Supported 10/100/1000 Mbps Compliance 802.1P, 802.1Q, 802.2, 802.3, 802.3ab, 802.3az, 802.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Networking and Communications Operating System Driver Windows 7 Professional 32-bit and 64-bit, Windows Vista Business 64, Windows Vista Business 32, Windows XP Professional, Windows XP x64. Support Red Hat Enterprise Linux 4 (RHEL4.8 or newer)*, Red Hat Enterprise Linux 5 (RHEL5.
QuickSpecs HP Z220 CMT Workstation Technical Specifications - Networking and Communications HP X520 10GbE Dual Port Hardware Certifications Adapter FCC B, UL, CE, VCCI, BSMI, CTICK, KCC HP 10GbE SFP+ SR Transceiver Operating Temperature 0°C to 45°C (32°F to 113°F) Operating Humidity 0% to 85%, noncondensing Dimensions (H x W x D) 0.47(h) x 0.54(w) x 2.19(d)inches (1.19 x 1.38 x 5.57 cm) © 2013 Hewlett-Packard Development Company, L.P.
