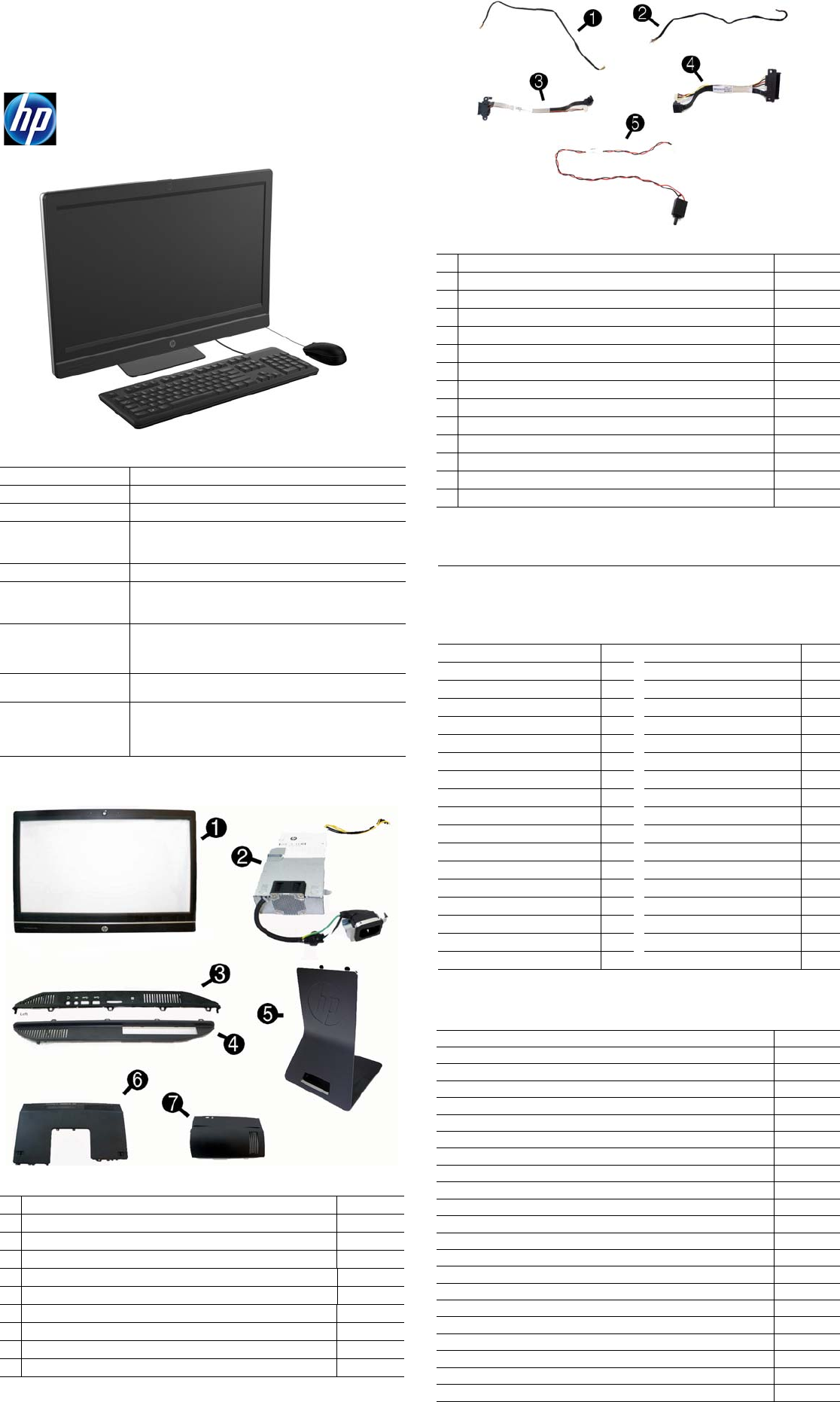

HP EliteOne 800 G1 AIO Business PC, (21.5" NT) 757391-001 page 1

Illustrated Parts & Service Map

HP EliteOne 800 G1 All-in-One Business PC (21.5" NT)

tained herein is subject to change without notice. HP shall not be liable for

technical or editorial errors or omissions contained herein.

Document Number 757391-001. 1st Edition March 2014.

Key Specifications

Spare Parts

Processor Type Intel® 4th generation Core™

RAM Type

Non-ECC, DDR3 SDRAM, 1600 MT/s, SODIMM, 2 slots

Maximum RAM 16 GB

Expansion Slots • (1) Mini PCIe half-length (used by wireless LAN module)

• (2) MXM 3.0 Type A - 35W

•(1) mSATA

Chipset Intel Q87

Bays • (1) 3.5" hard drive; supports up to two - 2.5" hard drives or

one - 3.5" hard drive

• (1) 5.25" slim line optical drive

I/O Interfaces Side: (1) USB 3.0, (1) USB 3.0 fast-charging, mic, headphone,

card reader

Rear: PS/2 mouse and keyboard, (2) USB 2.0, (2) USB 3.0, Dis-

playPort, RJ-45, stereo line out, serial (optional)

Display 21.5-inch IPS, full HD (1920 x 1080) diagonal, widescreen,

WLED, backlit, anti-glare

Operating Systems • Windows 8

• Windows 7

•FreeDOS

• Novell SUSE Linux Enterprise Desktop 11

System Unit

1 Front bezel with camera lens 762610-001

2 Power supply, 180W 732494-001

3 Left side panel 732489-001

4 Right side panel 698193-001

5 Standard stand assembly 732509-001

* Height adjustment stand 698226-001

6 Upper rear access panel (security screw and hardware are not spared) 698194-001

* Lower rear access panel 762611-001

7 Rear I/O security cover 732492-001

* Display panel, WLED 732495-001

*Not shown

Cables

1 Power button board cable 698208-001

2 Backlight cable 732496-001

3 Optical drive cable (data and power assembly) 698221-001

4 Hard drive cable (data and power assembly) 698215-001

5 Intrusion sensor with cable 688665-001

* Display (LVDS) cable 761785-001

* 2nd hard drive cable 698216-001

* Converter board side cable 698206-001

* Capacitive strip sensor cable 698210-001

* Webcam cable 698211-001

* Adapter, DisplayPort to VGA 603250-001

* Adapter, DisplayPort to DVI 662723-001

* Adapter, DisplayPort to HDMI 617450-001

* DisplayPort cable 487562-001

*Not shown

Keyboards (not illustrated)

PS/2

USB

Wireless with mouse and dongle

Washable*

Smart card

Smart card, CCID

724718-xx1

724720-xx1

730323-xx1

700510-xx1

701427-xx1

701671-xx1

Arabic -17x

Japanese -29x

F Arabic -DE1 LA Spanish -16x

BHCSY -B41 Norwegian -09x

Belgian -18x

People’s Republic of China

-AAx

Brazilian Portuguese -20x Portuguese -13x

Bulgaria -26x Romanian -27x

Czech and Slovakian -22x Russian -25x

Danish -08x

Slovenian -23x

French -05x South Korea -KDx

French Canadian -12x

Spanish -07x

German -04x Swedish -10x

Greek -15x Swiss -11x

Hebrew -BBx Taiwanese -ABx

Hungarian -21x Thai -28x

India -D61 Turkish -14x

International** -37x

U.S. -00x

International English -L3x U.K. -03x

Italian -06x

* -001, -121, -161, -201 only ** 701427-xx1 only

Mass Storage Devices (not illustrated)

Blu-ray writer (BD-RE) drive 719157-001

DVD-ROM drive 608394-001

DVD±RW drive 657958-001

2 TB, 7200 rpm hard drive 616608-001

1 TB, 7200 rpm hard drive 667719-001

1 TB, 7200 rpm, hybrid SSD hard drive, 2.5-inch 724937-001

500 GB, 7200 rpm hard drive, self-encrypting (SED) 696442-001

500 GB, 7200 rpm, hybrid SSD hard drive, 2.5-inch 724938-001

500 GB, 7200 rpm hard drive, 2.5-inch 761771-001

500 GB, 7200 rpm, hard drive, 3.5-inch 613208-001

500 GB, 5400 rpm hard drive, 2.5-inch, FIPS 748317-001

500 GB, 7200 rpm hard drive, 2.5-inch, self-encrypting (SED) 762188-001

320 GB, 7200 rpm hard drive 761770-001

256 GB Solid State Drive (SSD) 680020-001

256 GB Solid State Drive (SSD), self-encrypting (SED) 746141-001

180 GB Solid State Drive (SSD), MLC 754076-001

128 GB Solid State Drive (SSD) 665961-001

128 GB Solid State Drive (SSD), SED 746140-001

120 GB Solid State Drive (SSD) 661841-001

120 GB Solid State Drive (SSD), MLC 756459-001

32 GB mSATA drive 762612-001

32 GB mSATA drive, SRT 762613-001

Summary of content (4 pages)

PAGE 1
Illustrated Parts & Service Map HP EliteOne 800 G1 All-in-One Business PC (21.5" NT) © 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. HP shall not be liable for technical or editorial errors or omissions contained herein. Document Number 757391-001. 1st Edition March 2014.
PAGE 2
Standard and Optional Boards Misc Boards 1 Webcam 732510-001 2 Converter board 752122-001 3 HP WLAN 802.11 a/g/n, 2x2 701398-001 * Intel Dual Band Wireless-N 7260NB 802.11 a/b/g/n 2x2 WiFi 717382-001 * 802.11a/b/g/n WLAN module + Bluetooth 4.
PAGE 3
System Setup and Boot Access the Setup Utility during computer boot by pressing the F10 key. If you do not press F10 at the appropriate time, you must restart the computer and again press F10 when the monitor light turns green. NOTE: Not all settings are available for all models. Advanced (continued) Onboard Devices - Allows you to set resources for or disable on-board system devices.
PAGE 4
System Board System Board Connectors and Jumpers (component location may vary) DIMM3 Memory socket - Channel B USB3 DIMM1 Memory socket - Channel A RJ45 Two external USB 3.0 connectors Network jack WEBCAM Webcam connector USB External USB 2.
