Maintenance and Service Guide
Table Of Contents
- Product description
- External component identification
- Illustrated parts catalog
- Removal and replacement procedures
- Preliminary replacement requirements
- Component replacement procedures
- Bottom cover
- Rear cover
- Hard drive
- Memory module
- Y-axis capacitor board
- RTC battery
- USB board
- X-axis capacitor board
- Converter board
- Media card reader board
- USB connector cable
- Speakers
- Display stand recess
- Power button board
- Battery
- Webcam/microphone module
- Audio/USB board
- WLAN module
- Air flow channel
- Display panel cable
- Fan
- System board
- Heat sink
- Display stand
- Wireless antenna
- Middle frame
- Power connector cable
- Using Setup Utility (BIOS) and HP PC Hardware Diagnostics (UEFI)
- Specifications
- Backing up, restoring, and recovering
- Power cord set requirements
- Recycling
- Index
Item Component Spare part number
Cable Kit, includes: 728048-001
(1) USB board ribbon cable
(2) X-axis capacitor board cable
(3) Converter board cable
(4) Converter board ribbon cable
(5) Media card reader board ribbon cable
(6) USB connector cable
(7) Webcam/microphone module cable
(8) Audio/USB board ribbon cable
(9) Capacitor board ribbon cable
Mass storage device
Item Component Spare part number

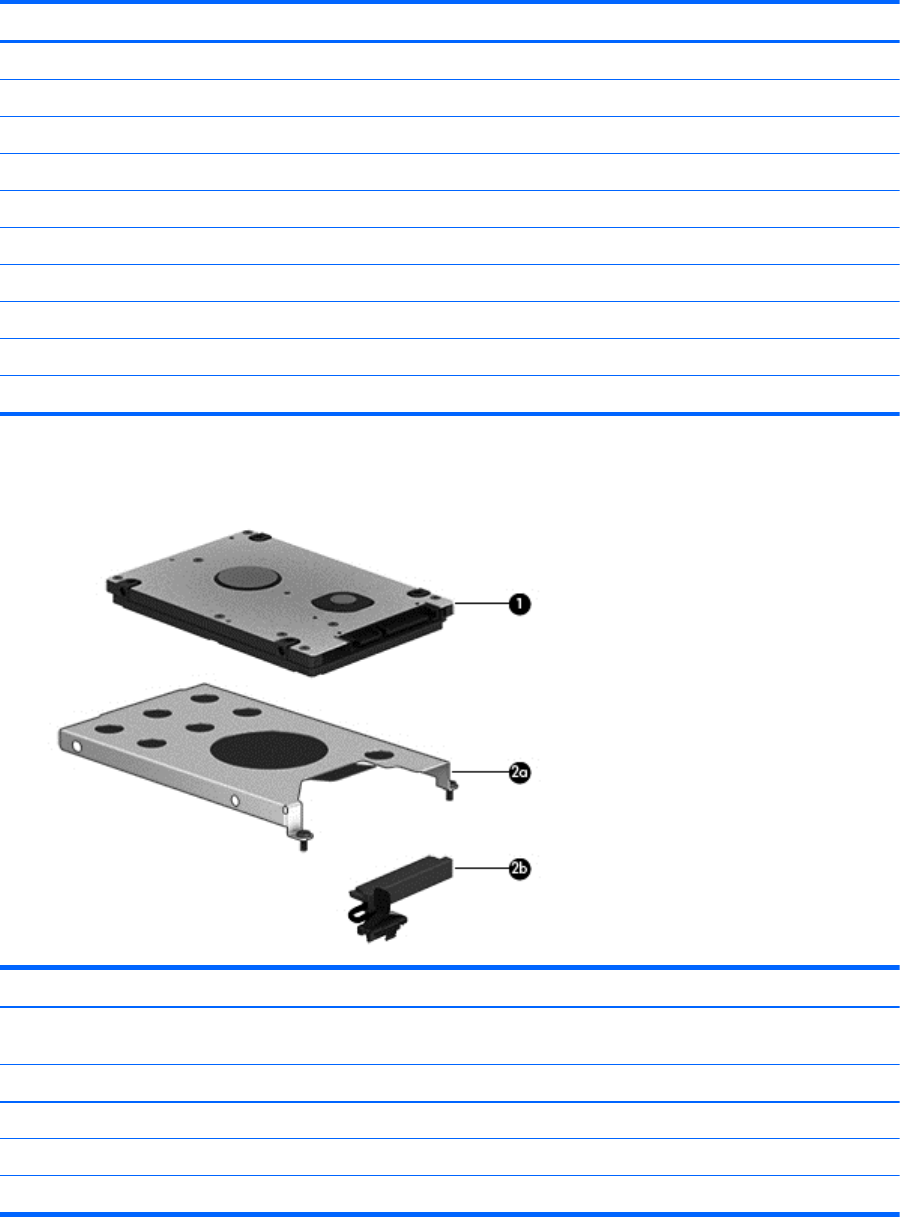

(1) 1-TB, 5400-rpm, 9.5-mm hybrid drive with 8-GB NAND cache (2.5-in, SATA, does
not include hard drive bracket, hard drive connector cable, or screws):
731999-005
Hard Drive Hardware Kit, includes: 728053-001
(2a) Hard drive bracket
(2b) Hard drive connector cable
Hard drive bracket screw (not illustrated)
Mass storage device 13
