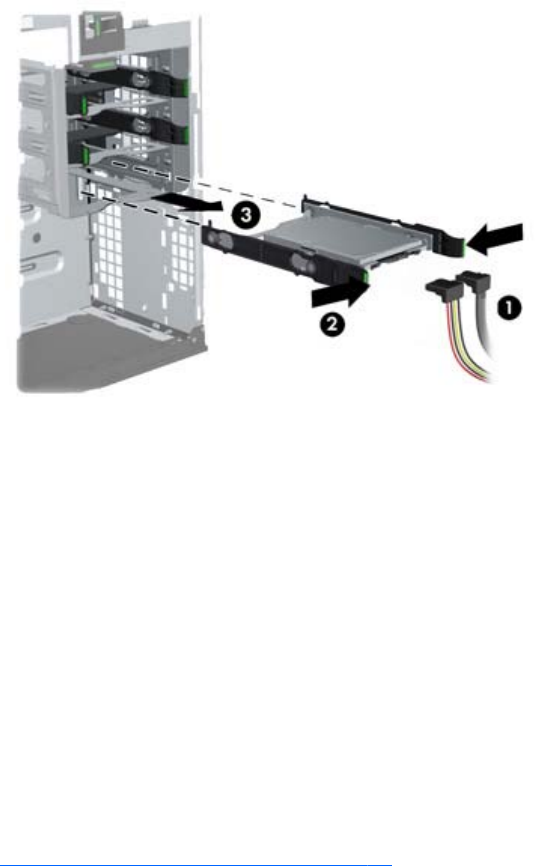

4. Squeeze together at the HDD sled's green touch points (2), then slide the hard disk drive (3) out
from the chassis as shown. Support the HDD from below while you slide it out.
Figure 5-33 Removing the drive from the chassis
5. Replace the side access cover when finished.
Installing hard disk drives
Installation guidelines
The workstation typically ships with one HDD, but you can add additional drives to expand space for
programs, data storage, or backup. In general, you should plan to add HDDs starting with the first
available bay farthest from the optical drive bays.
After installation, you can use the Computer Setup (F10) Utility to:
●
Assign drive letters of your choice to the new HDDs. (The workstation assigns drive letters
automatically if you do not choose them.)
●
Change the boot sequence so that the workstation boots from one of the additional drives. (Disk
C:\ is the typical boot disk.)
See
The Computer Setup (F10) Utility on page 25 for more information.
