2. Install the HDD into the mounting sled as shown in the following figure.

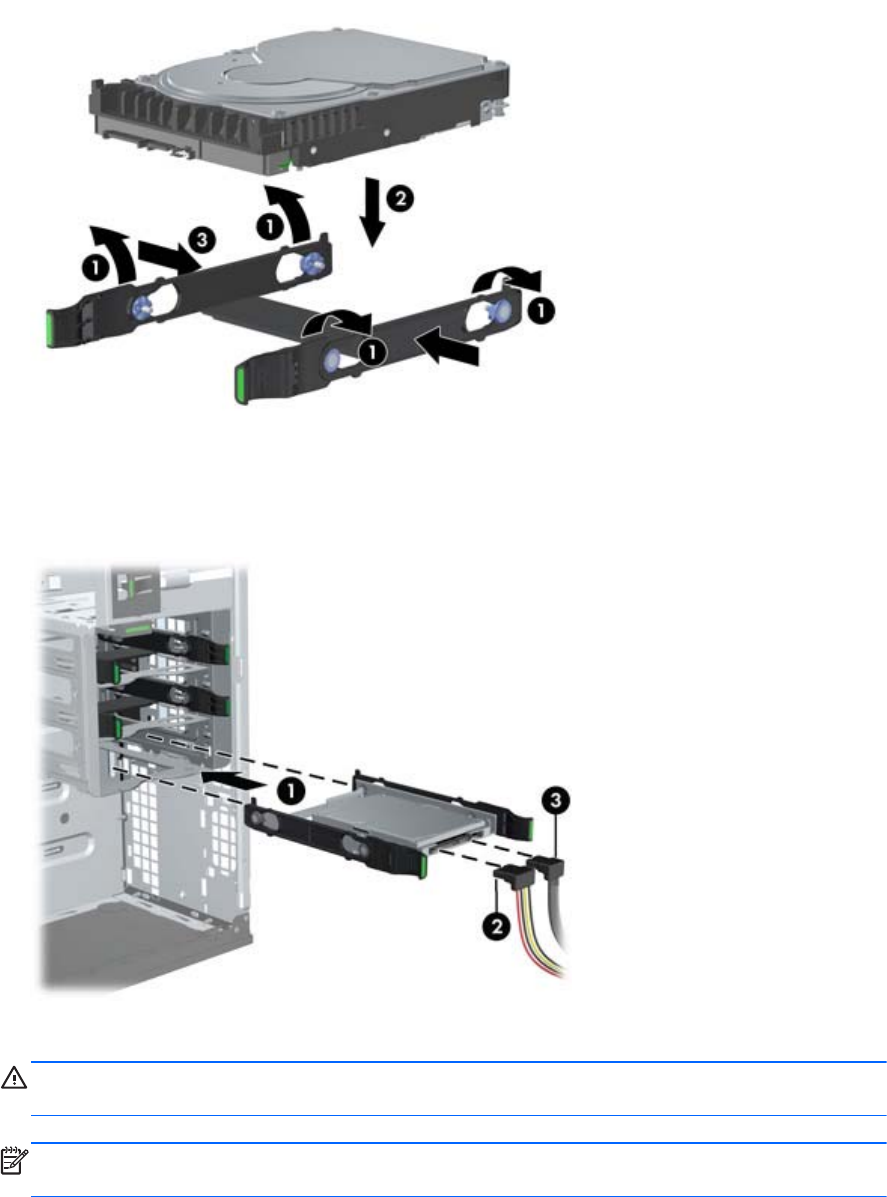

Figure 5-36 Installing the HDD in the mounting sled
3. Push the sled containing the HDD into the selected bay until it snaps into place (1) as shown in the
following figure.
Figure 5-37 Installing the HDD drive
4. Attach a power cable (2) and a data cable (3) to the hard disk drive.
CAUTION: To avoid crushing or pinching the data cable when you replace the access panel,
use the HP-supplied data cable with right-angle connectors.
NOTE: Connect data cables to lower-numbered drive connectors first on the system board. To
identify hard disk drive ports, refer to the workstation service label on the side access panel.
ENWW
Removing and installing components
97
