Installing the system board
To install the system board:
1. Carefully insert the system board into the chassis so that mounting holes align with the screw holes
in the chassis (2). You may have to slide the system board toward the rear of the chassis.

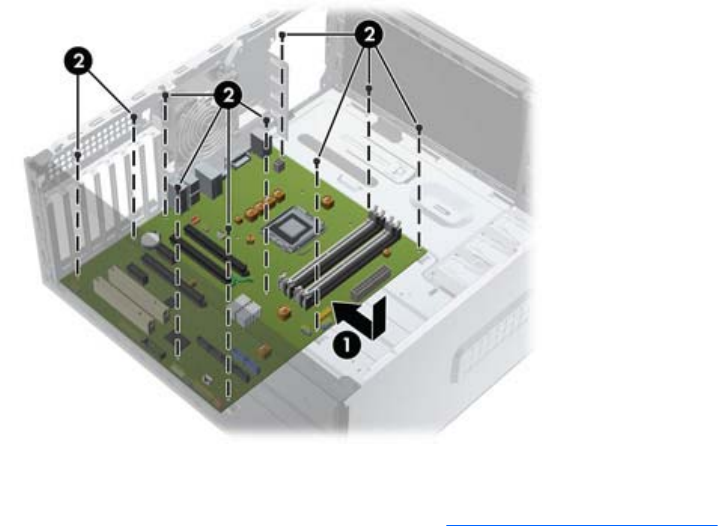

Figure 5-44 Inserting and aligning the system board
2. Replace the mounting screws (2).
3. Reinstall all removed components and cables. (See
Power connections on page 81 to identify
power cables.)
