9. Rotate the EMI filler panels and the optical drive 90 degrees as shown in the figure below, and
then reinstall them (see
Installing an optical drive (desktop configuration) on page 77.

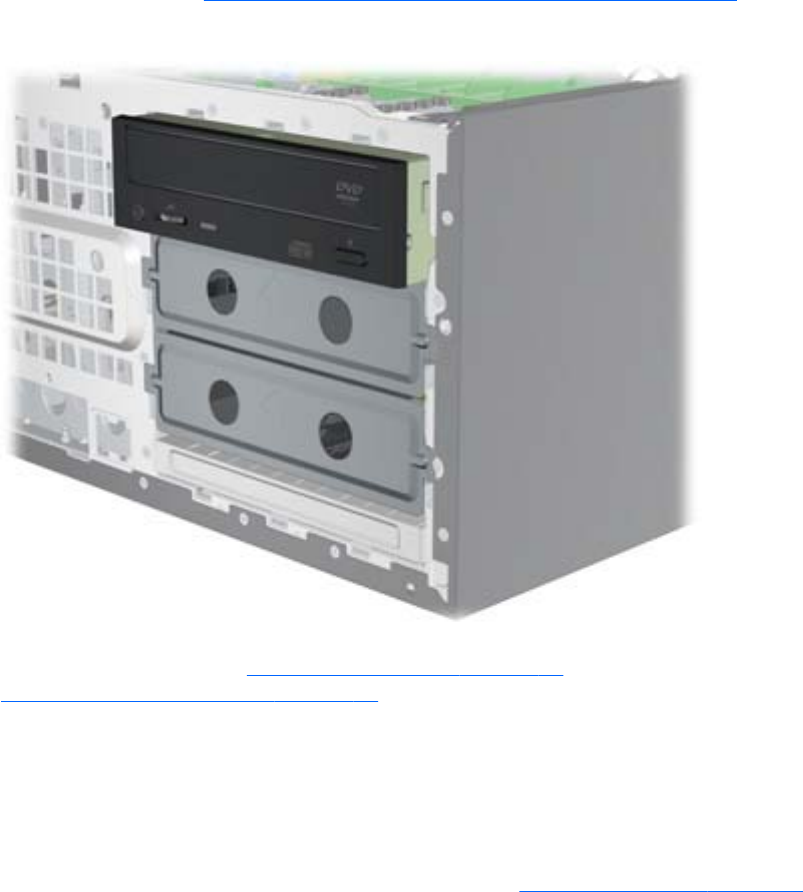

Figure 5-48 Reinstalling the optical drive
10. Replace the front bezel (see Installing the front bezel on page 68) and the side access panel (see
Installing the side access panel on page 65) when finished.
Product recycling
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and
rechargeable batteries.
For information about recycling HP components or products, see
http://www.hp.com/go/recycle.
108 Chapter 5 Replacing components ENWW
