Rear panel components

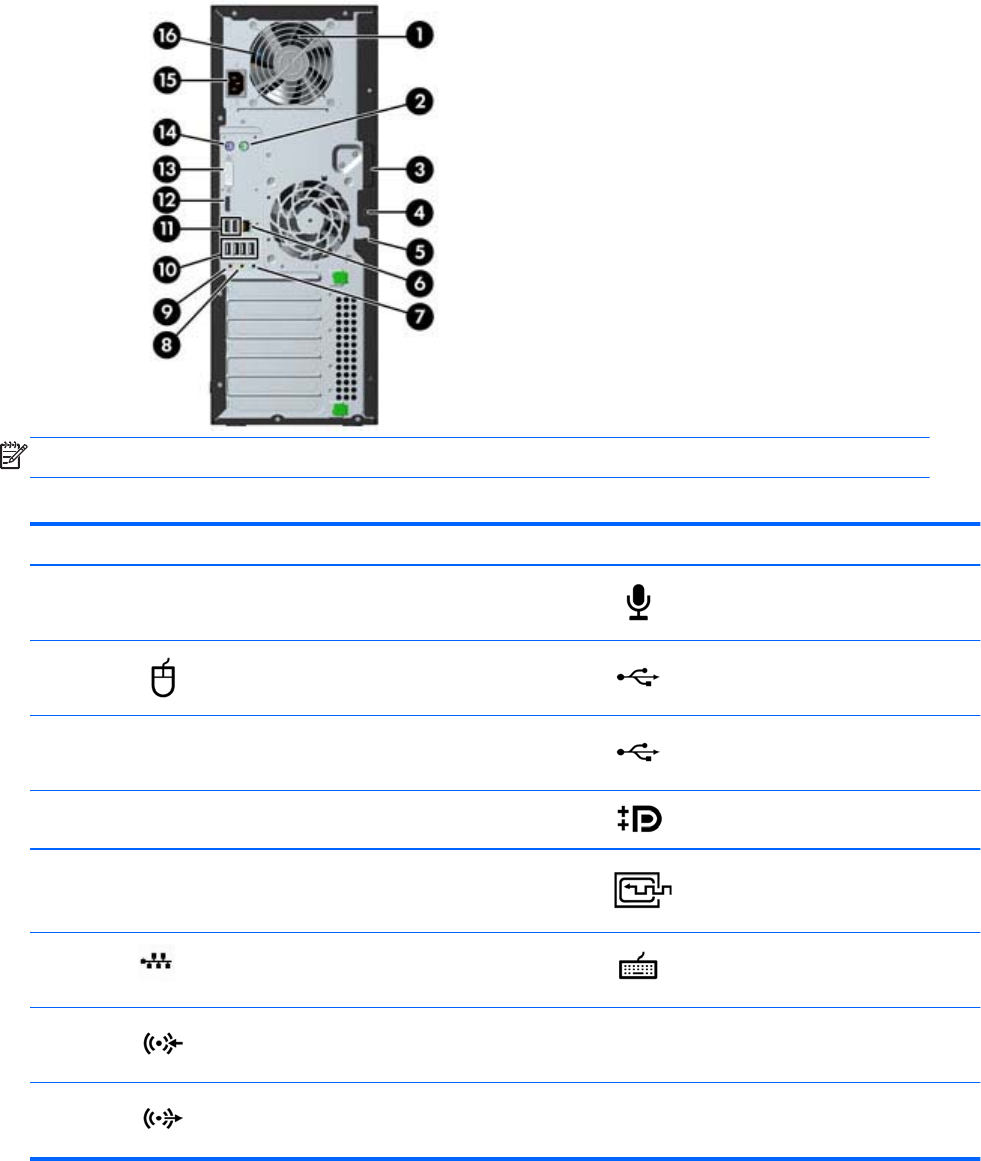

The following figure shows the rear panel of a typical HP Z210 CMT Workstation.
Figure 1-4 Workstation rear panel
NOTE: The labels for the rear panel connectors use industry-standard icons and colors.
Table 1-3 Rear panel components
Item Symbol Description Item Symbol Description
1 Power supply fan 9
Microphone connector (pink)
2
PS/2 mouse connector (green) 10 USB 2.0 ports (4)
3 Universal chassis clamp opening 11
USB 2.0 ports (2)
4 Cable lock slot 12
Display Port (DP) connector
5 Padlock loop 13
DVI-I connector
6
RJ-45 network connector 14 PS/2 keyboard connector (purple)
7
Audio line-in connector (blue) 15 Power cord connector
8
Audio line-out connector (green) 16 Power Supply BIST LED
