Bezel
This section describes how to remove and install the front chassis bezel.
Removing the front bezel
To remove the front bezel:
1. Remove the side access panel (see
Removing the side access panel on page 65).

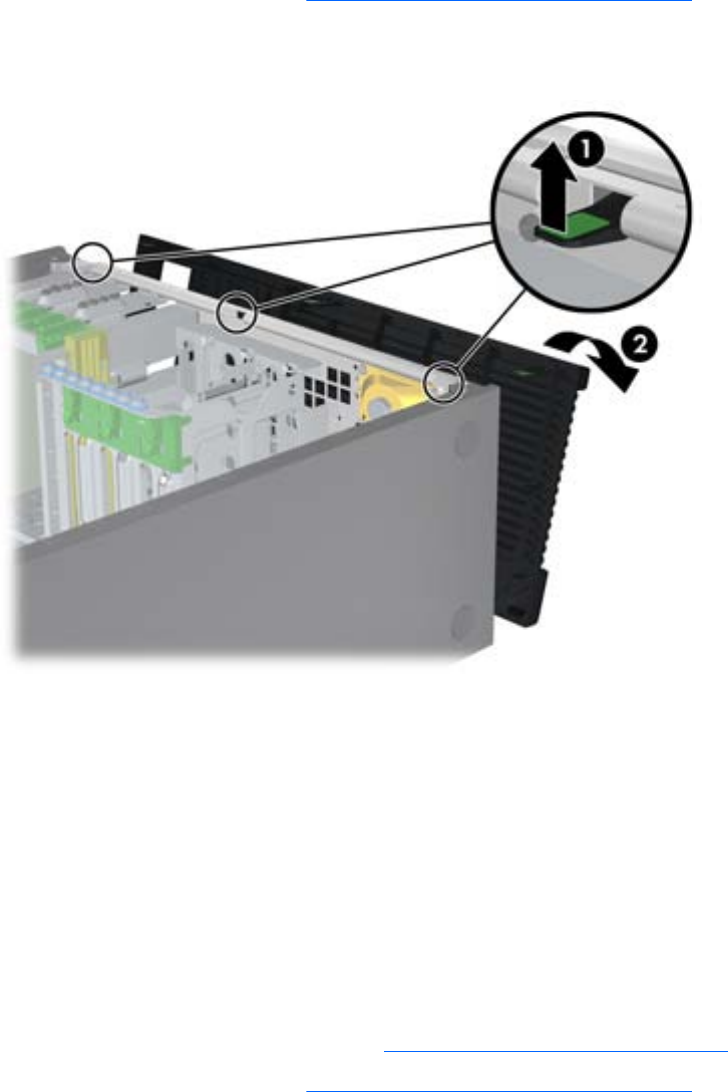

2. Lift the release tabs (1), and then rotate the front bezel off the chassis (2).
Figure 5-6 Removing the front bezel
Installing the front bezel
To install the front bezel, align the tabs discussed in the previous section and rotate the bezel until it
snaps in place.
Front panel I/O device assembly
This section describes how to remove and install a front panel I/O device assembly.
Removing the front panel I/O device assembly
To remove the front panel I/O device assembly:
1. Disconnect power from the workstation (see
Predisassembly procedures on page 62 ).
2. Remove the side access panel (see
Removing the side access panel on page 65).
