Optical disk drive (mini-tower configuration)
This section describes how to remove and install an optical disk drive in the workstation mini-tower
configuration. For instructions on how to remove and install an optical disk drive in the workstation
desktop configuration, see
Optical disk drive (desktop configuration) on page 75.
Removing an optical disk drive from the optical bay (mini-tower
configuration)
1. Disconnect power from the workstation (see Predisassembly procedures on page 62).
2. Remove the side access panel (see
Removing the side access panel on page 65).
3. Remove the front bezel (see
Removing the front bezel on page 68).

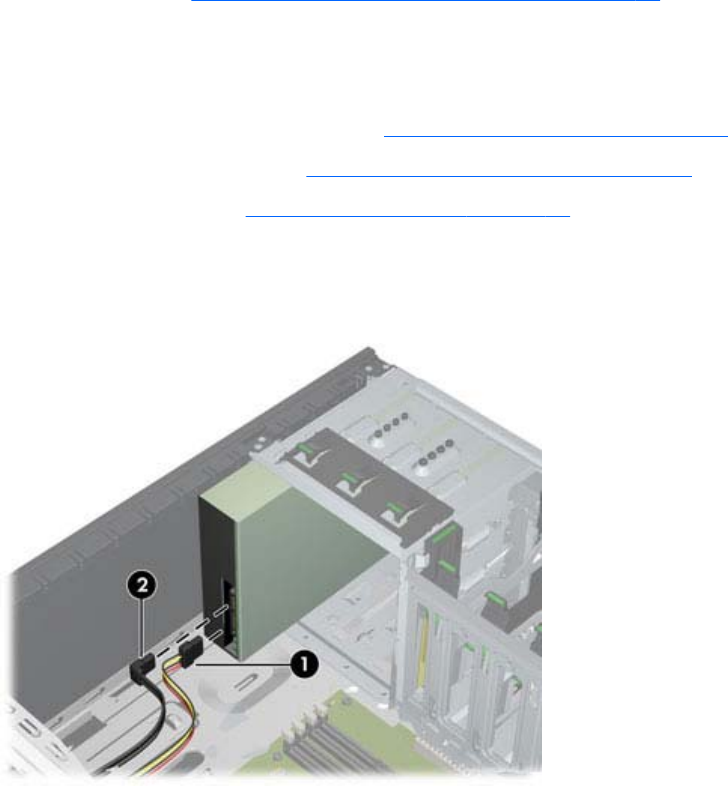

4. Disconnect the data (1) and power (2) cables from the optical disk drive as shown in the following
figure.
Figure 5-10 Disconnecting optical disk drive cables
