Installing an optical disk drive in the optical bay (mini-tower configuration)
To install an optical disk drive:
1. Disconnect power from the workstation (see
Predisassembly procedures on page 62).
2. Remove the side access panel (see
Removing the side access panel on page 65).
3. Remove the front bezel (see
Removing the front bezel on page 68).
4. If necessary, remove the EMI filter panel from the drive bay you wish to use.
5. Lift the green release lever (1) and slide the optical disk drive into the bay (2) until it is stopped by
the release latch, as shown in the figure below.

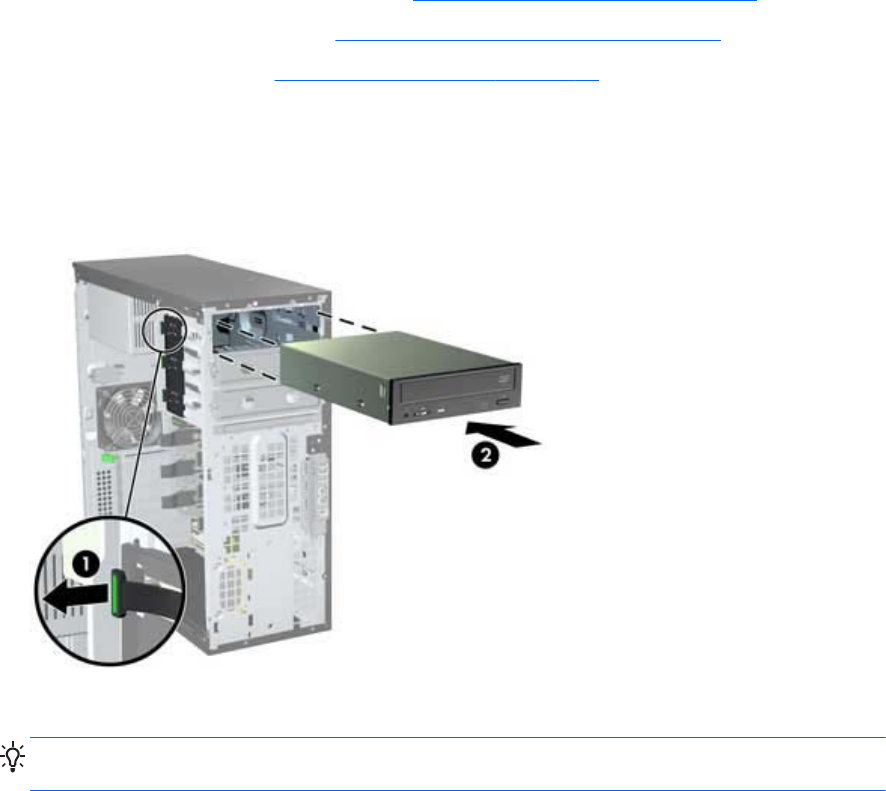

Figure 5-12 Installing the optical disk drive
6. Release the latch and continue sliding the drive until the latch closes and engages the drive.
TIP: Adjacent drives may move slightly when you insert the drive. If necessary, slide and align
other devices to get the release latch to close and engage all devices.
