5. Press down on the green drive-lock release lever (1) and gently slide the drive out of the chassis
(2).

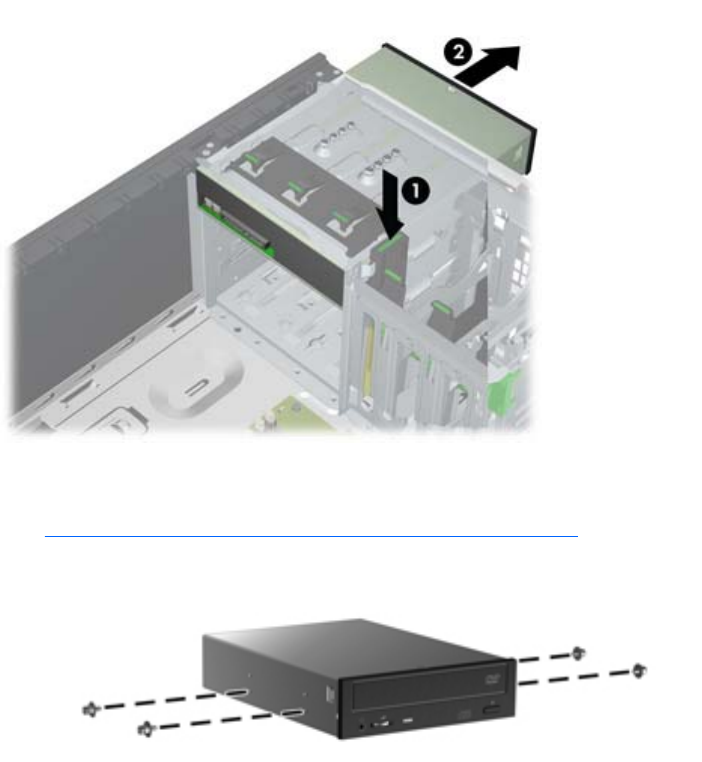

Figure 5-16 Removing the optical drive from chassis
6. If you plan to install another drive, remove the drive completely from the chassis (1) and remove
the four guide screws from the drive (2) so that you can re-use the screws to install the new drive.
(See
Installing an optical drive (desktop configuration) on page 77 below.)
Figure 5-17 Removing the optical drive screws
76 Chapter 5 Replacing components ENWW
