Installing an optical drive (desktop configuration)
1. Disconnect power from the system (see Predisassembly procedures on page 62),
2. Remove the side access panel (see
Removing the side access panel on page 65),
3. Remove the front bezel (see
Removing the front bezel on page 68),
4. Remove the bezel blank from the drive bay you wish to use.
5. Remove the EMI filter panel from the drive bay you wish to use.
6. Install the four black metric M3 guide screws into the drive (1).

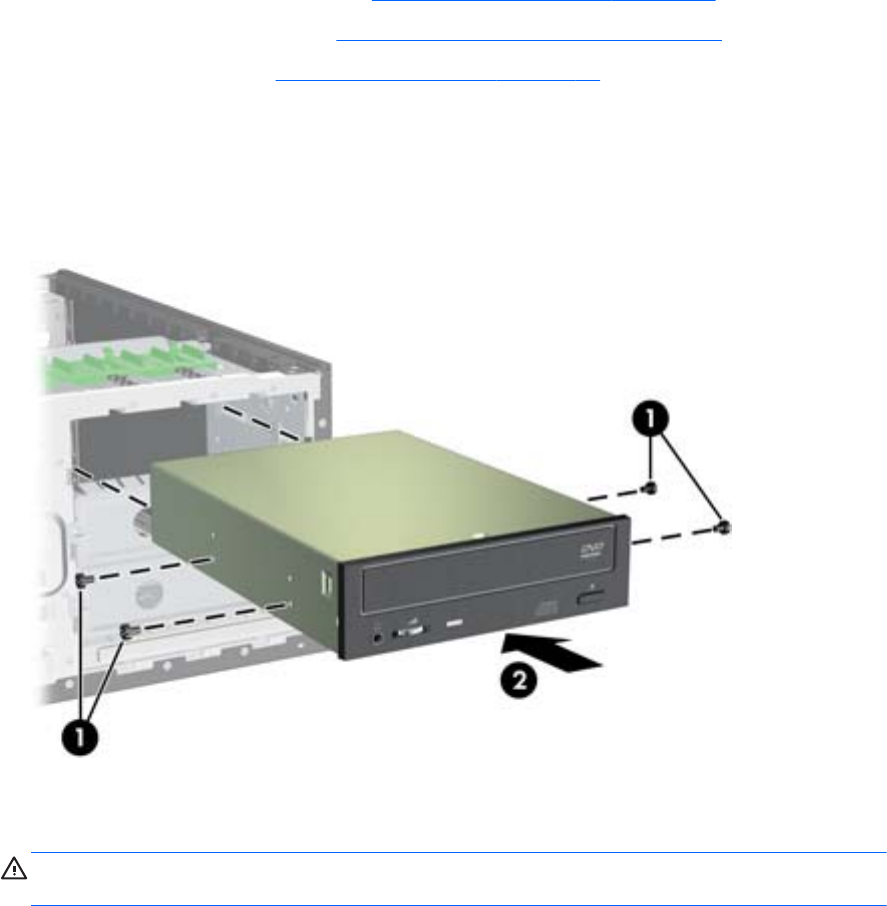

Figure 5-18 Installing the optical drive
7. Align the screws with the grooves in the drive bay and gently slide the drive into the casing until it
snaps into place (2).
CAUTION: Pull on the drive to make sure it has snapped into place. If the drive is loose, it can
be damaged if you move the workstation.
