Expansion card slot identification
This section identifies and describes workstation expansion card slots, and presents card configuration
information.
Slot identification and description

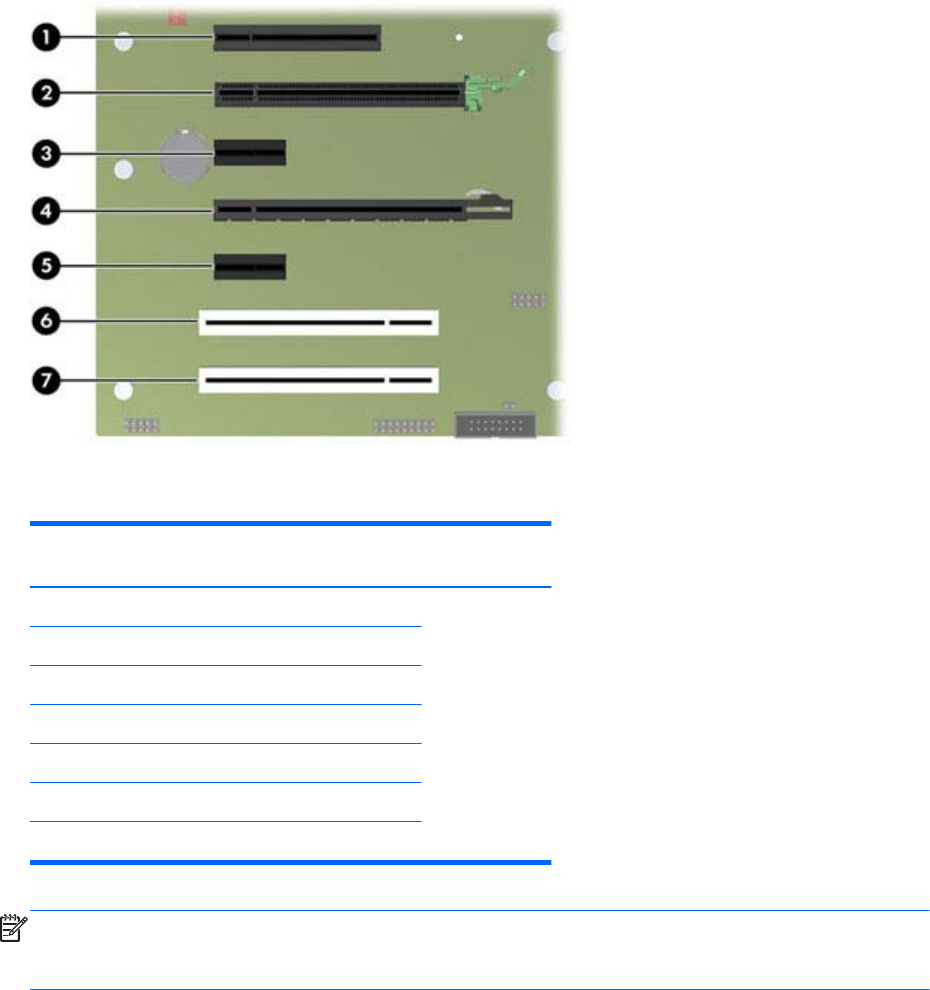

The following figure identifies workstation expansion card slots.
Figure 5-28 Identifying expansion card slots
The following table describes the workstation PCIe card slots.
Table 5-5 PCI slots
Slot Type Slot power
(per slot)
Slot power
(maximum)
1PCIe2 - x8(4) 25W
150W max for
total power
usage of all
card slots
2PCIe2 - x16 75W
3PCIe2 - x1 10W
4 PCIe2 - x16(4) 25W
5PCIe2 - x1 10W
6 PCI 32b/33MHZ 25W
7 PCI 32b/33MHZ 25W
NOTE: The x1, x4, and x16 designators describe the mechanical length of the slot. The number in
parentheses lists the number of electrical PCIe lanes routed to the expansion slot. For example, x16(4)
means that the expansion slot is mechanically a x16 length connector, with four PCIe lanes connected.
