A6826A - PCI-X Dual Channel 2Gb/s Fibre Channel Adapter Performance Paper for Integrity Servers

5
Scalability
A series of tests were conducted to evaluate the performance scalability of the A6826A adapter on rx2600,
rx4640, rx7620, rx8620 and HP Integrity Superdome servers.

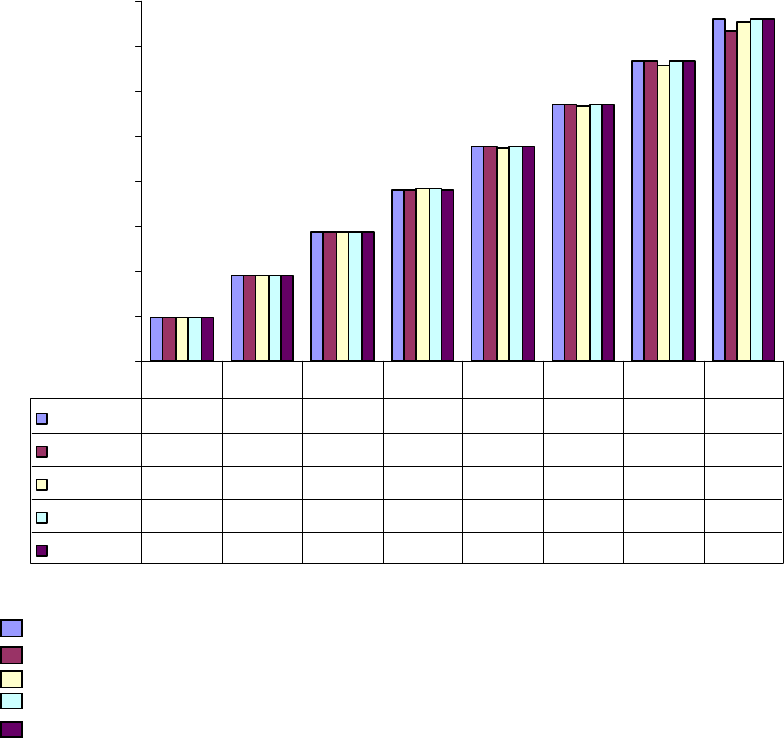

Chart 3a: 128KB Sequential Read Throughput
0
200
400
600
800
1000
1200
1400
1600
Number of Ports
Throughput (MB/s)
rx2600
191 380 572 760 952 1142 1332 1518
rx4640
191 382 573 763 953 1143 1331 1466
rx7620
191 382 574 764 947 1133 1313 1506
rx8620
191 383 574 764 954 1143 1333 1522
Integrity-SD
191 382 572 763 953 1142 1333 1523
12345678
rx2600 with two 900MHz Itanium 2 processors and 8GB Physical memory
rx4640 with four 1.3GHz Itanium 2 processors and 8GB Physical memory
rx7620, 2 cell partition, each cell with four 1.3 GHz Itanium 2 processors and 8GB Physical memory
rx8620, 2 cell partition, each cell with four 1.3GHz Itanium 2 processors and 8GB Physical memory
Integrity Superdome, 2 cell partition with eight 1.5GHz Itanium 2 processors and 8GB physical memory
Chart 3a shows the read throughput performance of 1, 2, 3 and 4 A6826A adapters installed in rx2600,
rx4640, rx7620, rx8620, and HP Integrity Superdome servers. The X-axis represents the number of ports. The Y-
axis represents the throughput performance in MB/s.
Chart 3a shows excellent read throughput performance with linear scaling for 4 A6826As installed in rx2600,
rx4640, rx7620, rx8620 and HP Integrity Superdome servers, reaching an aggregate throughput of 1523MB/s.
A6826A adapters installed in HP Integrity servers offer an excellent scalable SAN solution.
