NOTE: If mutual CHAP on ESX is being configured, then target CHAP will need to be
configured on the HP 3PAR StoreServ Storage as well as initiator CHAP. Set target CHAP
secret using the HP 3PAR OS CLI sethost command with the targetchap parameter.
# sethost targetchap -f secret3_host ESX1
NOTE: Initiator CHAP secret and target CHAP secret cannot be the same.
a. For ESX 4.x and 5.x:

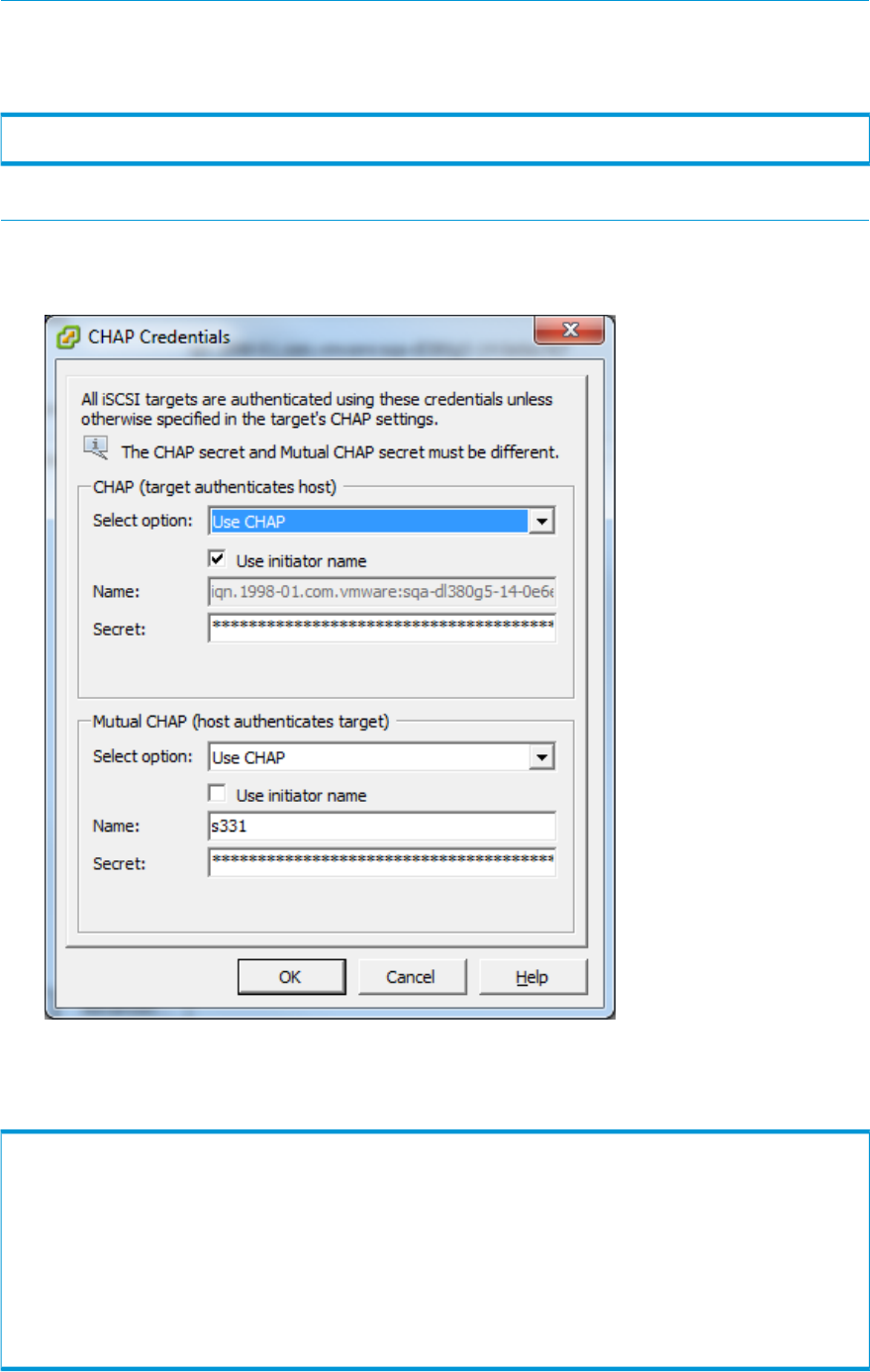

Figure 4 CHAP Credentials in ESX 4.x and 5.x
7. Issue the HP 3PAR OS CLI showhost -chap command to verify that the specified CHAP
secret has been set for the host definition.
For Initiator chap
# showhost -chap
Id Name -Initiator_CHAP_Name- -Target_CHAP_Name-
0 ESX1 ESX1 --
For mutual chap
# showhost -chap
Id Name -Initiator_CHAP_Name- -Target_CHAP_Name-
0 ESX1 ESX1 s331
Software iSCSI Support 21
