NOTE: Use HP 3PAR OS CLI showsys command to get the Mutual CHAP Name (Name of
your HP 3PAR StoreServ Storage).
# showsys
---------------(MB)----------------
ID -Name- ---Model---- -Serial- Nodes Master TotalCap AllocCap FreeCap FailedCap
99800 s331 HP_3PAR 7200 1699800 2 1 8355840 849920 7504896 1024
Hardware iSCSI Support
At ESX 5.0 and above, hardware iSCSI is supported using the CN1100E CNA card and other
Emulex BE3 models. This CNA can be configured using either Dependent iSCSI (the IP address of
the system is obtained from the host NIC connections) or Independent iSCSI (the IP address is
entered into the CNA card). The CN1100E can be configured to boot from SAN; SCSI targets
are entered into the card.
For general information about the CN1100E and other BE3 models supported, see the HP SPOCK
website:
HP SPOCK
Independent Hardware iSCSI
To set a static IP address, follow these steps:
1. After installing the CN1100E, boot the system. The following text appears if you have already
configured your CN1100E to operate in iSCSI as opposed to FCoE mode; if not use <Ctrl>
<P> to switch protocols:
Emulex 10Gb iSCSI Initiator BIOS..
Press <Ctrl> <S> for iSCSISelect(TM) Utility
2. Press Ctrl+S to enter the utility.

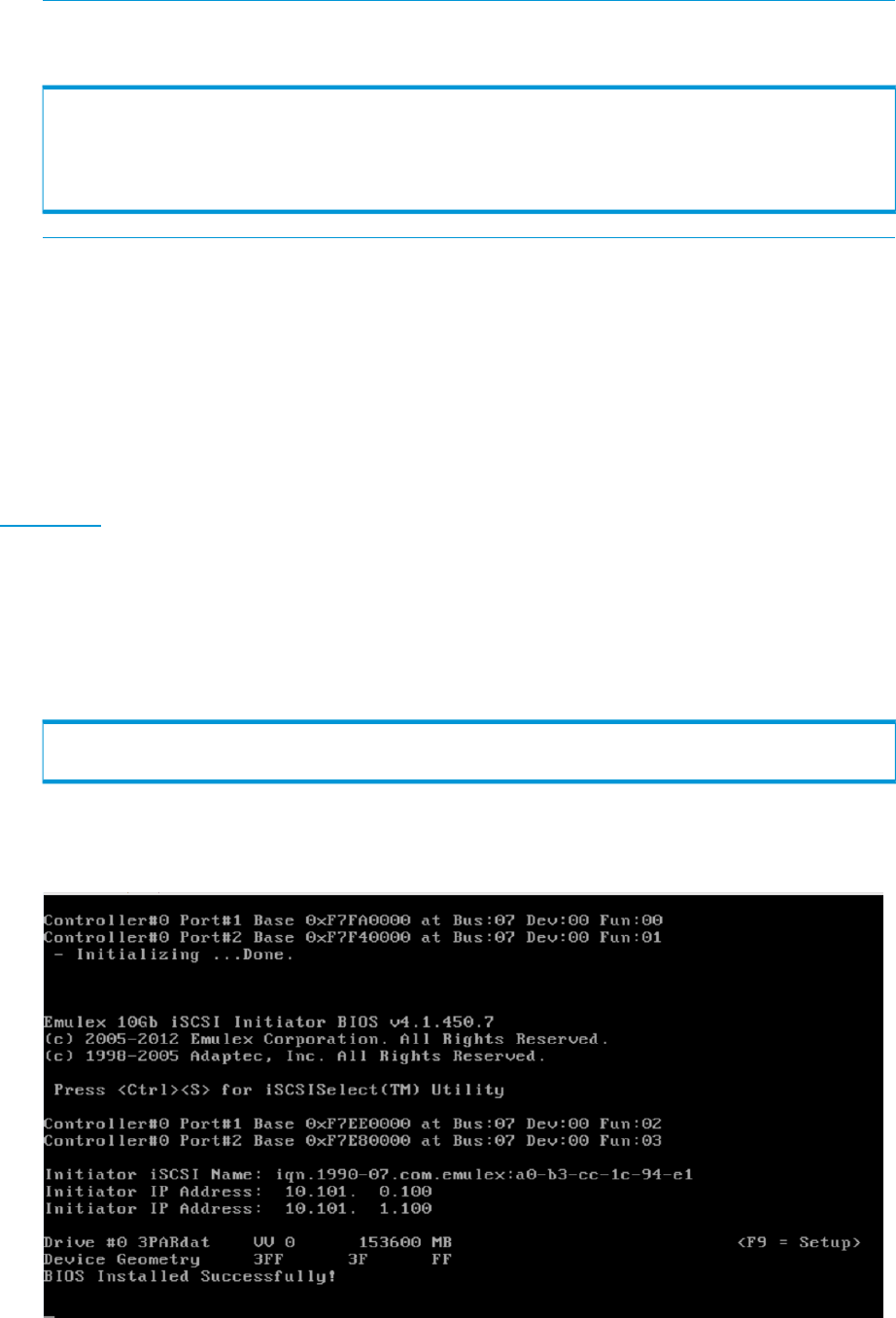

Figure 5 iSCSI Utility
3. Select a controller and press Enter.
