4. From the Controller Configuration screen, select Network Configuration and press Enter.
5. In the Network Configuration screen, select Configure Static IP Address and press Enter. The
screen for setting a static IP address displays.

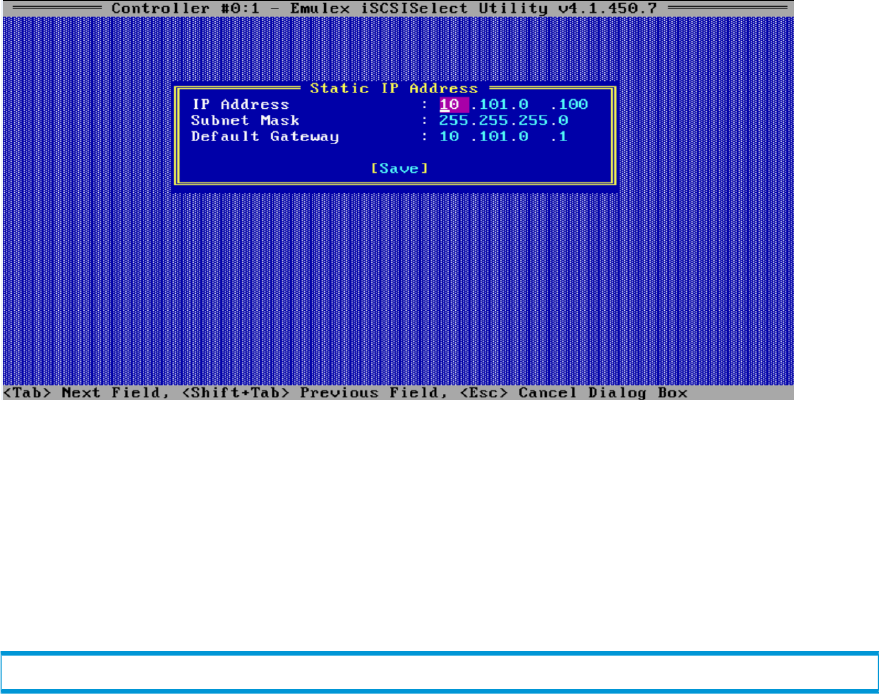

Figure 6 Setting a Static IP Address
6. After entering the IP address, subnet mask, and default gateway, click Save to return to the
Controller Configuration menu.
If the configuration being set up will be booted from SAN rather than from the host, follow these
steps.
1. After entering the iSCSI Initiator Configuration screen, which will be the first screen displayed,
obtain the IQN for the card and create a host definition on the HP 3PAR StoreServ Storage.
For example:
# createhost –iscsi –persona 11 Esx50Sys1 iqn.1990-07.com.emulex:a0-b3-cc-1c-94-e1
2. Assign a VLUN to this host definition to be used as the SAN boot LUN.
3. From the Controller Configuration menu, select Controller Properties.
4. In the properties screen, verify that boot support is enabled. If it is not, scroll to Boot Support
and enable it, then save and exit this screen.
5. From the Controller Configuration menu, select iSCSI Target Configuration.
6. In the iSCSI Target Configuration menu, select Add New iSCSI Target and press Enter.
7. Fill in the information for the first iSCSI target. Make sure Boot Target is set to Yes.
