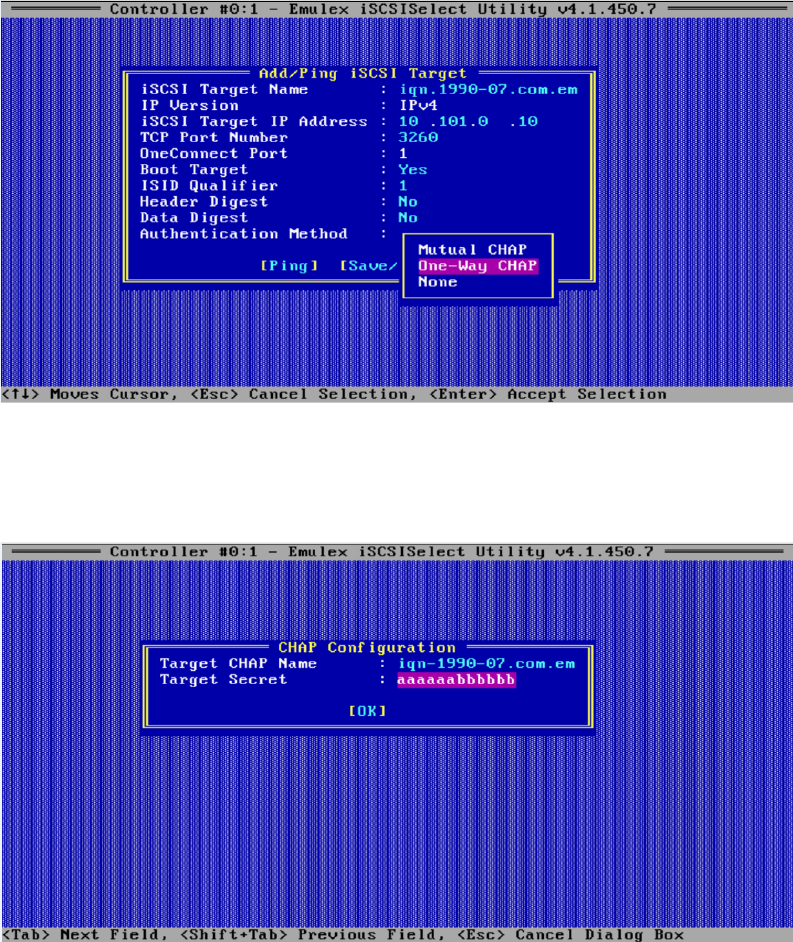

Figure 8 One-Way CHAP
The CHAP Configuration screen appears (see “CHAP Configuration for One-Way CHAP”
(page 25)).
Figure 9 CHAP Configuration for One-Way CHAP
Fill in the Target CHAP Name (the initiator IQN name) and Target Secret, then click OK.
• In the Authentication Method setting on the Add-Ping iSCSI Target screen (“One-Way
CHAP” (page 25)), select Mutual CHAP. The CHAP Configuration screen appears (see
“CHAP Configuration for Mutual CHAP” (page 26)).
Hardware iSCSI Support 25
