To remove the above Active-Active custom SATP rule:
# esxcli storage nmp satp rule remove -s "VMW_SATP_DEFAULT_AA" -P "VMW_PSP_RR" -O iops=100 –c "tpgs_off" -V "3PARdata" -M
"VV" -e "HP 3PAR Custom iSCSI/FC/FCoE Rule"
HP 3PAR custom SATP rule for use with persona 11/VMware (ALUA compliant array port
presentation)
# esxcli storage nmp satp rule add -s "VMW_SATP_ALUA" -P "VMW_PSP_RR" -O iops=100 -c "tpgs_on" -V "3PARdata" -M "VV" -e
"HP 3PAR Custom iSCSI/FC/FCoE ALUA Rule"
To remove the above ALUA custom SATP rule:
# esxcli storage nmp satp rule remove -s "VMW_SATP_ALUA" -P "VMW_PSP_RR" -O iops=100 -c "tpgs_on" -V "3PARdata" -M "VV"
-e "HP 3PAR Custom iSCSI/FC/FCoE ALUA Rule"
SATP Info Commands
Default SATP Rules and Their Current Default PSP
To list default SATP rules and their current default PSP (path policy), issue the following commands:

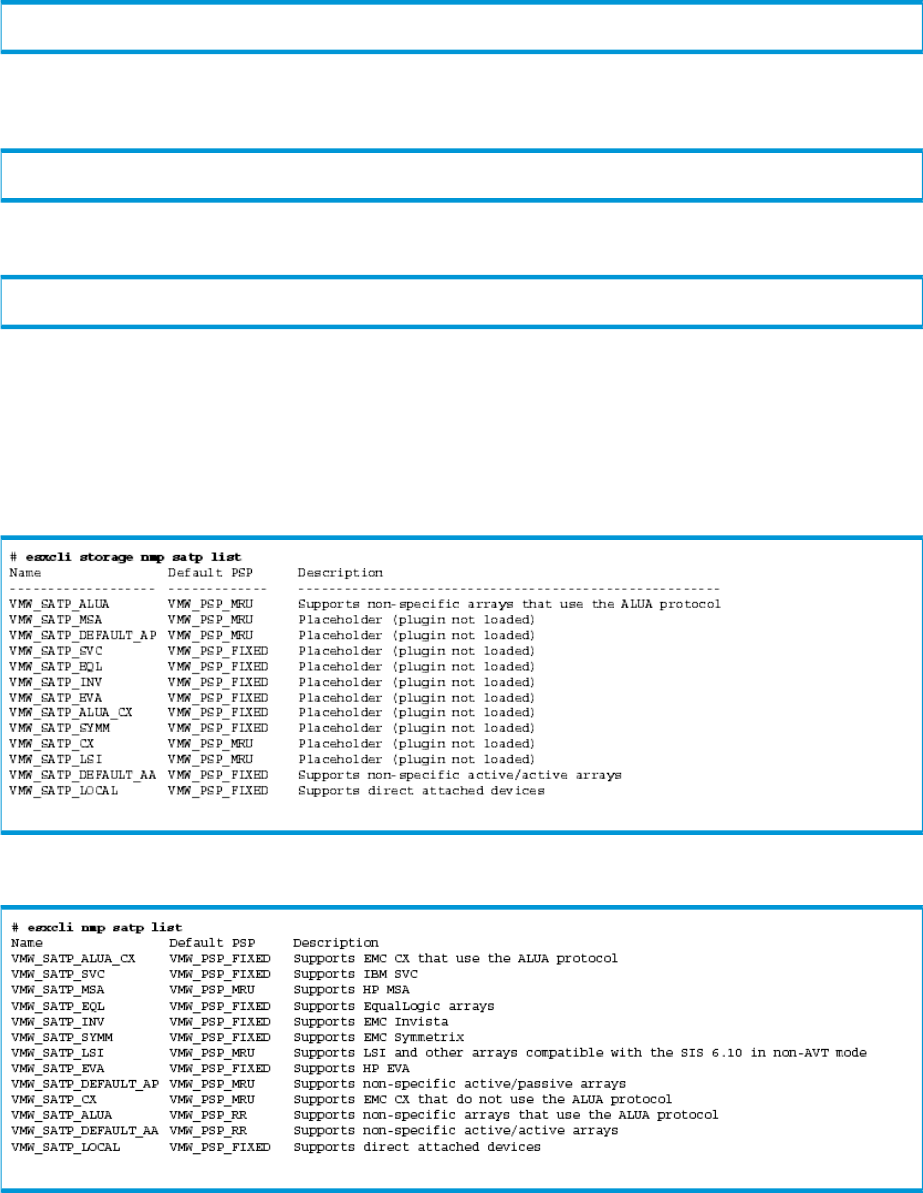

ESXi 5.x example
ESX/ESXi 4.x example
SATP Custom Rules and Associated Defined Parameters
To list SATP custom rules and associated defined parameters, issue the following commands:
Multipath Failover Considerations and I/O Load Balancing 47
