ports must be configured for FCoE. See Chapter 4, “Configuring the HP 3PAR StoreServ Storage
for FCoE” (page 32), for notes on how to configure FCoE ports on the StoreServ.

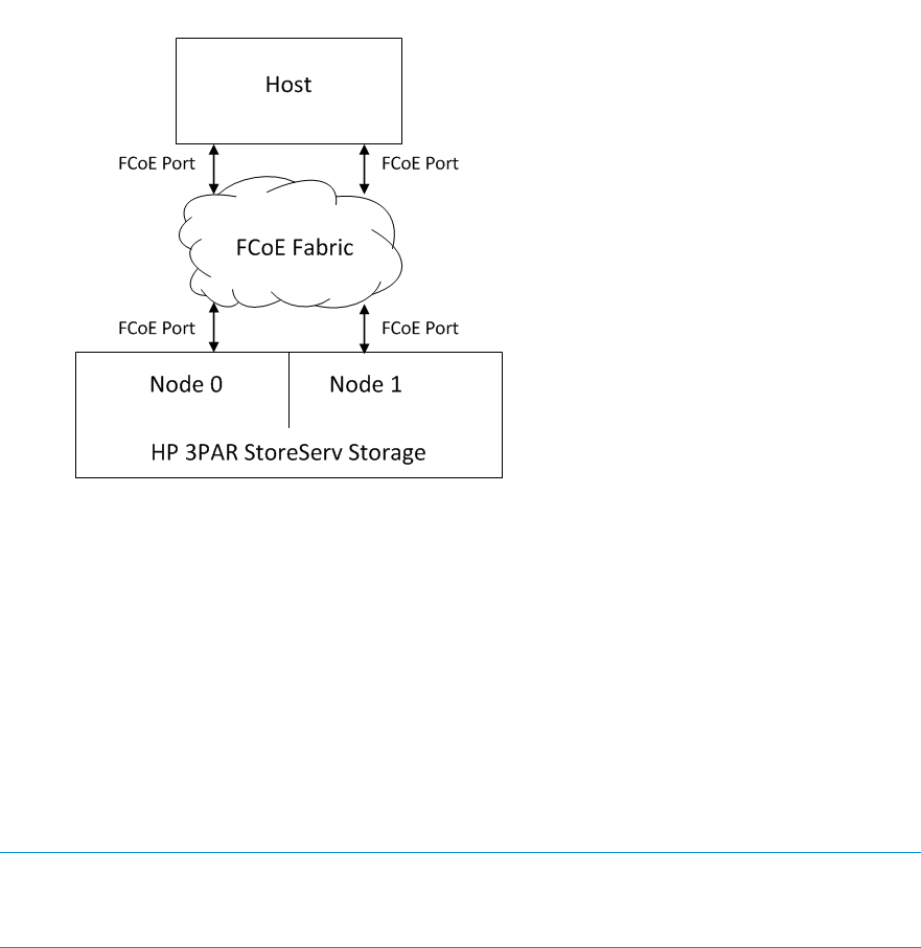

Figure 28 Initiator FCoE to Target FCoE
1. Install the CNA card in the server just like any other PCIe card - refer to the server vendor
documentation.
2. Install the CNA card driver following the CNA card installation instructions (it assumes the
server is already running a supported operating system).
3. Physically connect the server CNA card ports to the FCoE fabric.
4. Configure the HP 3PAR StoreServ Storage ports in accordance with the guidelines in section
“Configuring the HP 3PAR StoreServ Storage for FCoE” (page 32) and connect the HP 3PAR
StoreServ Storage ports to the FCoE fabric.
5. Create VLANs for the host initiator’s ports and the HP 3PAR StoreServ Storage target port.
Once the initiators have logged in to the HP 3PAR StoreServ Storage target ports, create a
host definition and provision storage to the host.
NOTE: FCoE switch VLANs and routing setup and configuration are beyond the scope of this
document. Consult your switch manufacturer's documentation for instructions of how to set up
VLANs and routing
Configuring Initiator FCoE to Target FCoE 63
