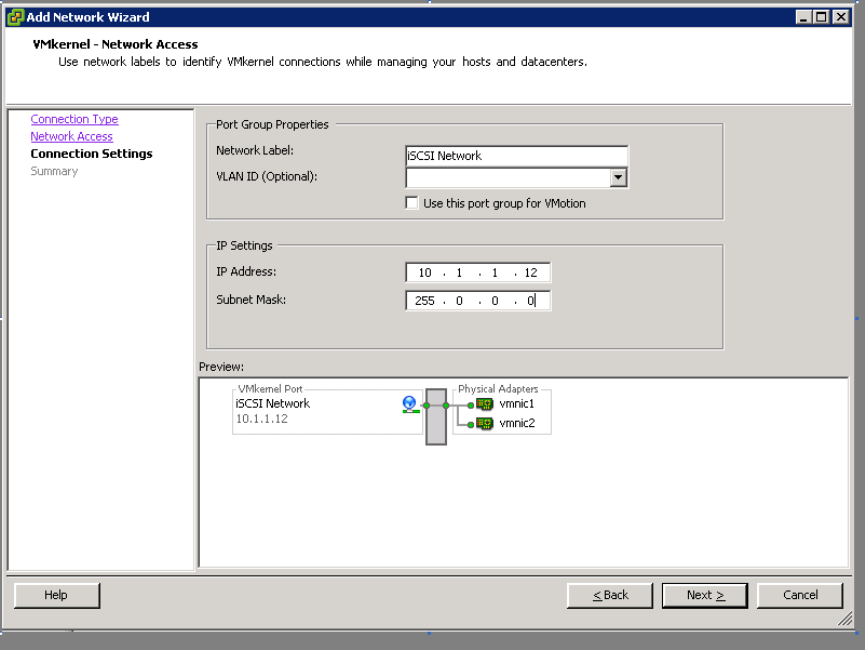

Figure 32 VMkernel — Network Access
9. Click Next, enter a network label, and then click Next.
10. Specify the IP settings that will be used for the iSCSI network. Click Next.
11. Review the information. Click Finish .
Configuring a Service Console Connection for the iSCSI Storage
The following steps describe how to configure the Service Console connection for the iSCSI storage.
Configuring a Service Console Connection for the iSCSI Storage 69
