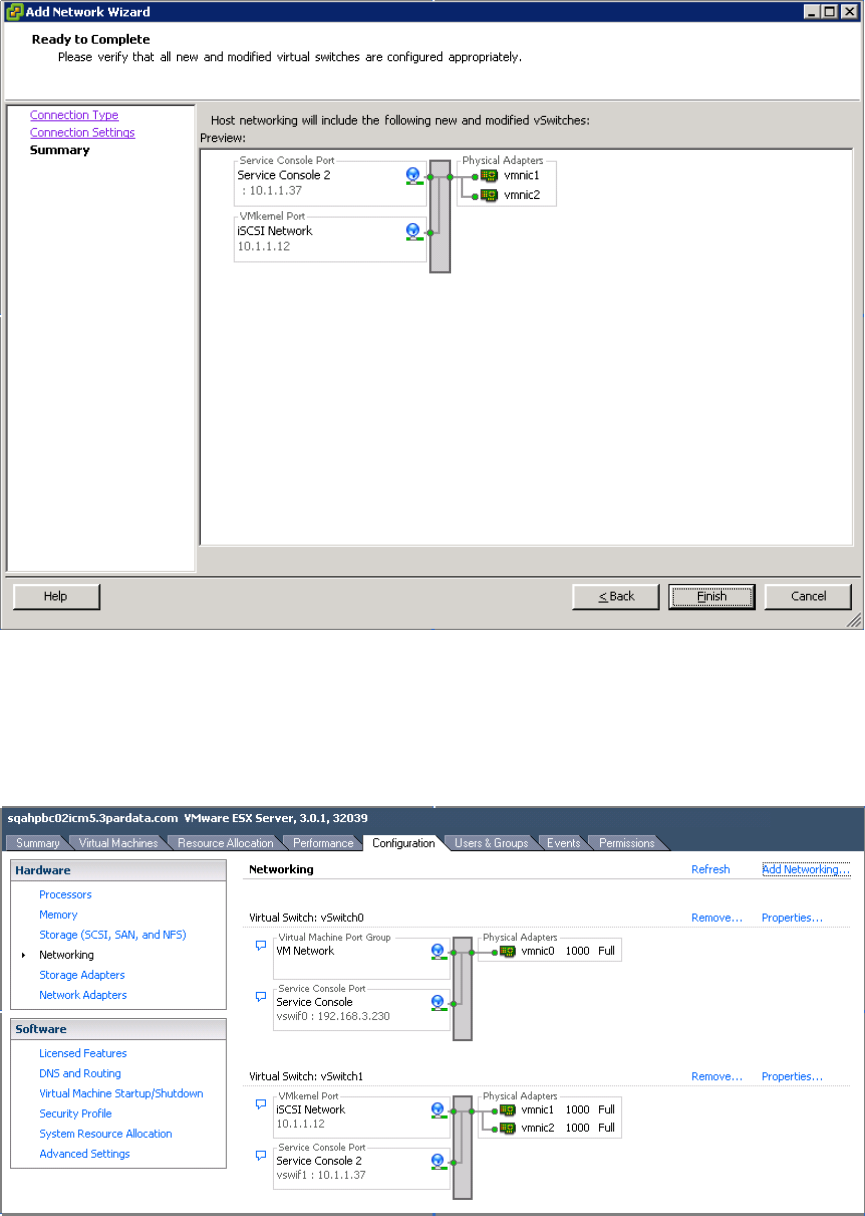

Figure 35 Ready to Complete
7. Click Finish.
8. Close all windows associated with the network configuration.
9. Check the Configuration display (Figure 36 (page 72)).
Figure 36 VMware ESX Server—Configuration Tab
The new network configuration is displayed with the addition of the iSCSI network.
You should now be able to ping the HP 3PAR StoreServ Storage ports that were previously
defined from the COS.
72 Configuring the Host for an iSCSI Connection
