HP BladeSystem c-Class SAN connectivity technology brief

Figure 5 shows the mapping of the FC connectivity options for the c7000 enclosure. Figure 5
illustrates the maximum FC connection capability of the c7000 enclosure. In practice, server blades
can support a mix of mezzanine cards of different interface types (FC, Ethernet, or InfiniBand)
simultaneously within the enclosure. Having two or more FC HBA mezzanine cards on each server
blade offers redundancy and enhanced throughput.

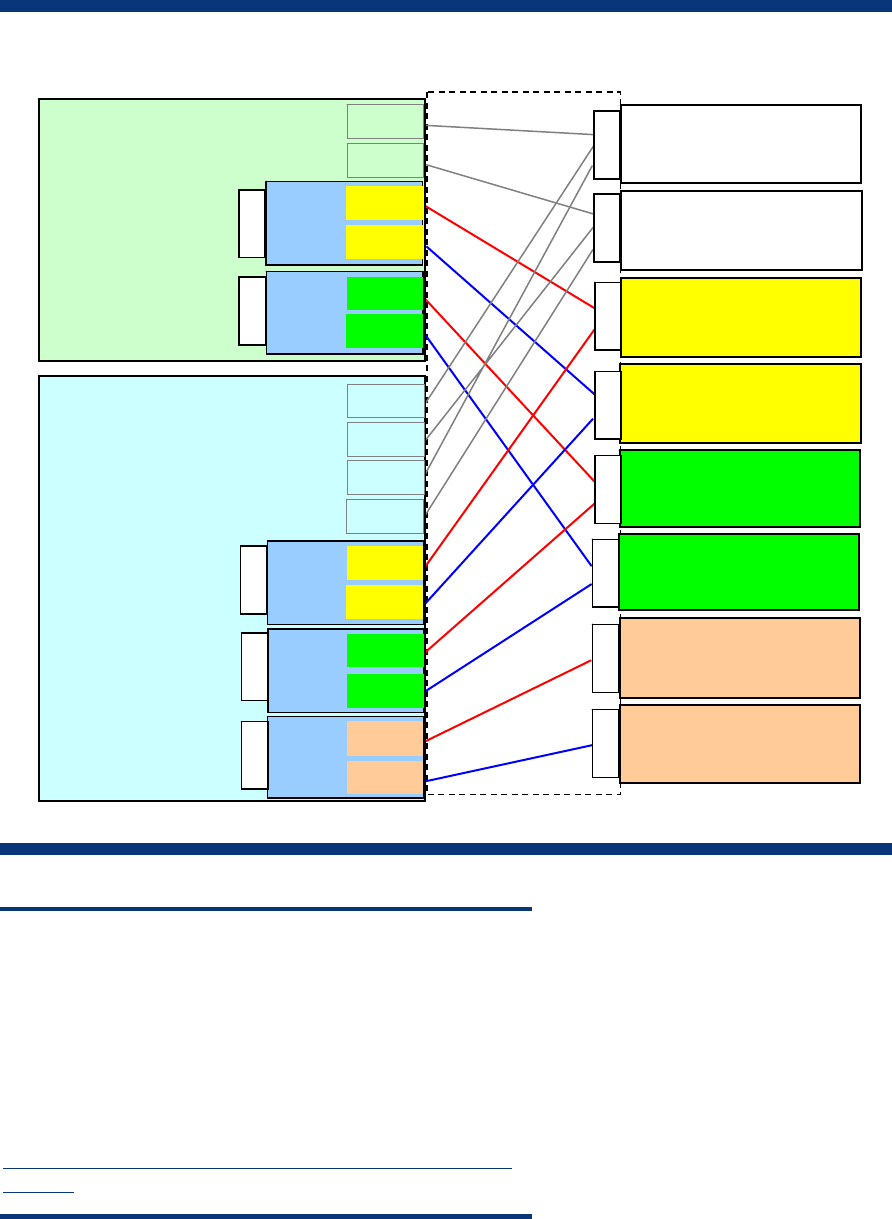

Figure 5. Mapping of server blade FC HBA ports (1x port connectivity) in the HP c7000 Enclosure
Midplane
Pass-thru, Virtual Connect,
or
SAN switch
Pass-thru, Virtual Connect,
or
SAN switch
Pass-thru, Virtual Connect,
or
SAN switch
Pass-thru, Virtual Connect,
or
SAN switch
Bay 5
Bay 6
Bay 7
Bay 8
Ethernet module
Bay 1
Bay 2
Ethernet module
Pass-thru, Virtual Connect,
or
SAN switch
Bay 3
Pass-thru, Virtual Connect,
or
SAN switch
Bay 4
Full-height server blade
(one of up to 8)
NIC 1
NIC 2
NIC 3
NIC 4
FC HBA
mezz
card 1
Port 2
Port 1
Slot 1
FC HBA
mezz
card 2
Port 2
Port 1
Slot 2
FC HBA
mezz
card 3
Port 2
Port 1
Slot 3
Half-height server blade
(one of up to 16)
NIC 1
NIC 2
FC HBA
mezz
card 1
Port 2
Port 1
Slot 1
FC HBA
mezz
card 2
Port 2
Port 1
Slot 2
NOTE:
The mezzanine slot fabric designation of all blades in a given
enclosure must be consistent. For example, the mezzanine card
installed in slot 1 of each blade must be the same technology (FC,
Ethernet, or InfiniBand) to work with the FC, Ethernet, or InfiniBand
interconnect modules in interconnect bays 3 and 4. However, it is
not mandatory that every server blade include a mezzanine card if
a connection to a fabric is not required by a server. Technical
information for c-Class enclosures is available at
http://h71028.www7.hp.com/enterprise/cache/316735-0-0-0-
121.html
8
