A Installation of Switch Management Module
This appendix provides the procedures for installing the Switch Management Module. The Switch
Management Module is not a Field Replaceable Unit (FRU) and is installed in the managed version of the
HP BLc QLogic 4X QDR InfiniBand Managed Switch.
To install the Switch Management Module in an HP BLc QLogic 4X QDR InfiniBand Managed Switch,
follow the steps below:
1. Unscrew and remove the screw (see callout 1 in Figure 10) on the blank cover (see callout 2 in
Figure 10).
Place the screw to the side to be reused.

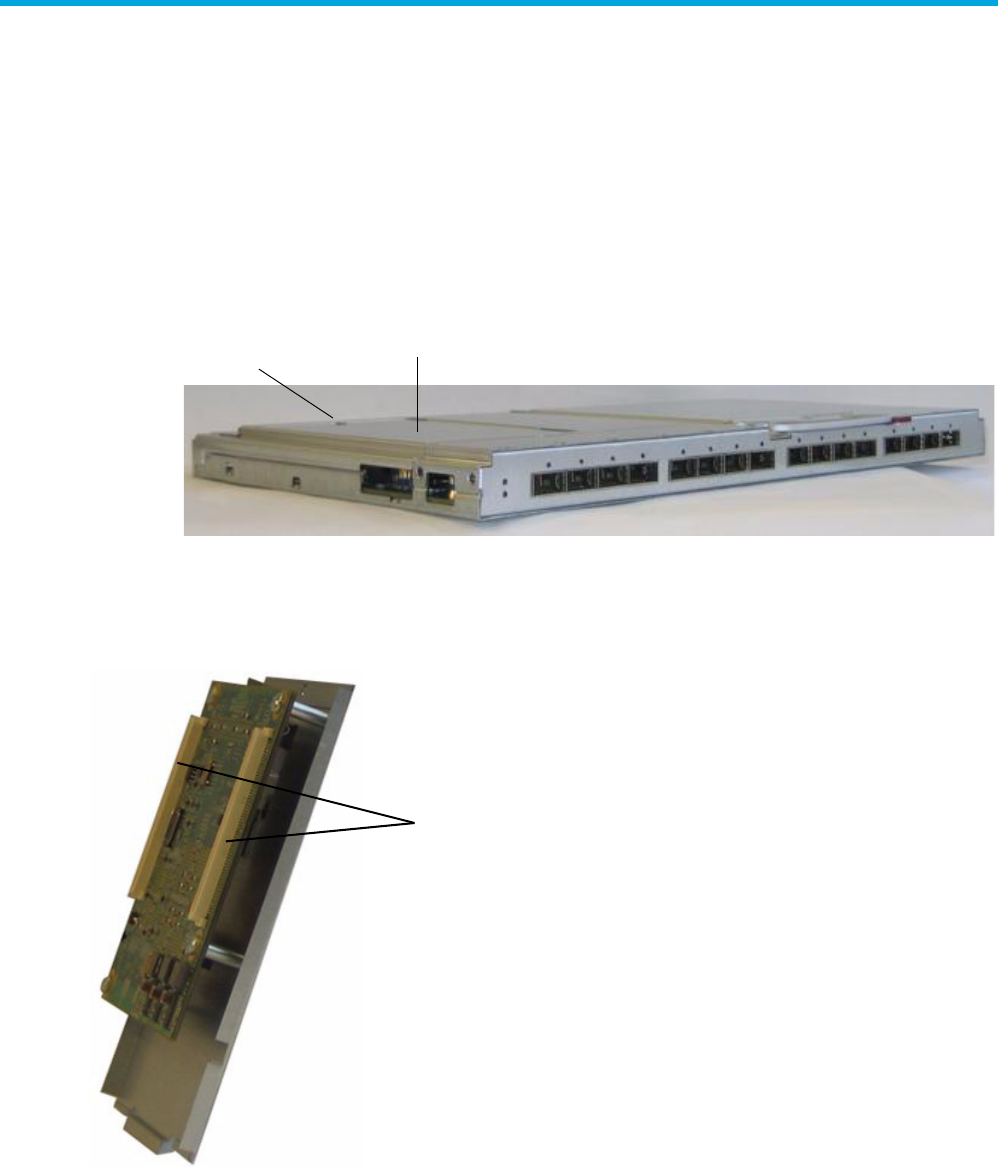

Figure 10 Location of the Switch Management Module Blank Cover.
2. Remove the blank cover (see callout 2 in Figure 10) and discard.
3. Insert the Switch Management Module Assembly (Figure 11) on the switch at the pivot points (see
callout 1in Figure 12).
Figure 11 Switch Management Module Assembly
1
2
1
