HP BLc QLogic 4X QDR InfiniBand Managed Switch and InfiniBand Switch Management Module Installation Guide 21
4. Close cover slowly, ensuring that the module connectors (see callout 1 in Figure 11) connect to the
motherboard connectors (see callout 1 in Figure 13).

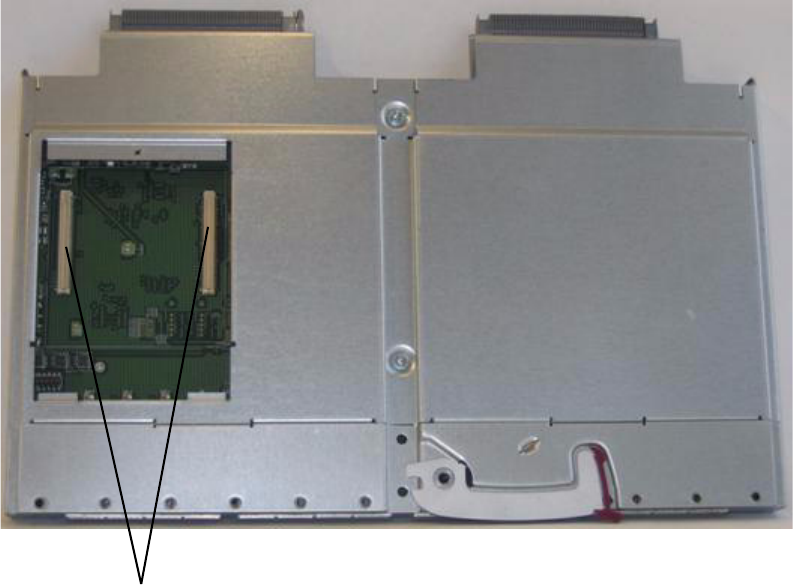

Figure 13 Switch with Switch Management Module Cover Removed
5. Replace the screw that was removed in step 1 (see callout 1 in Figure 10) and tighten securely.
1
