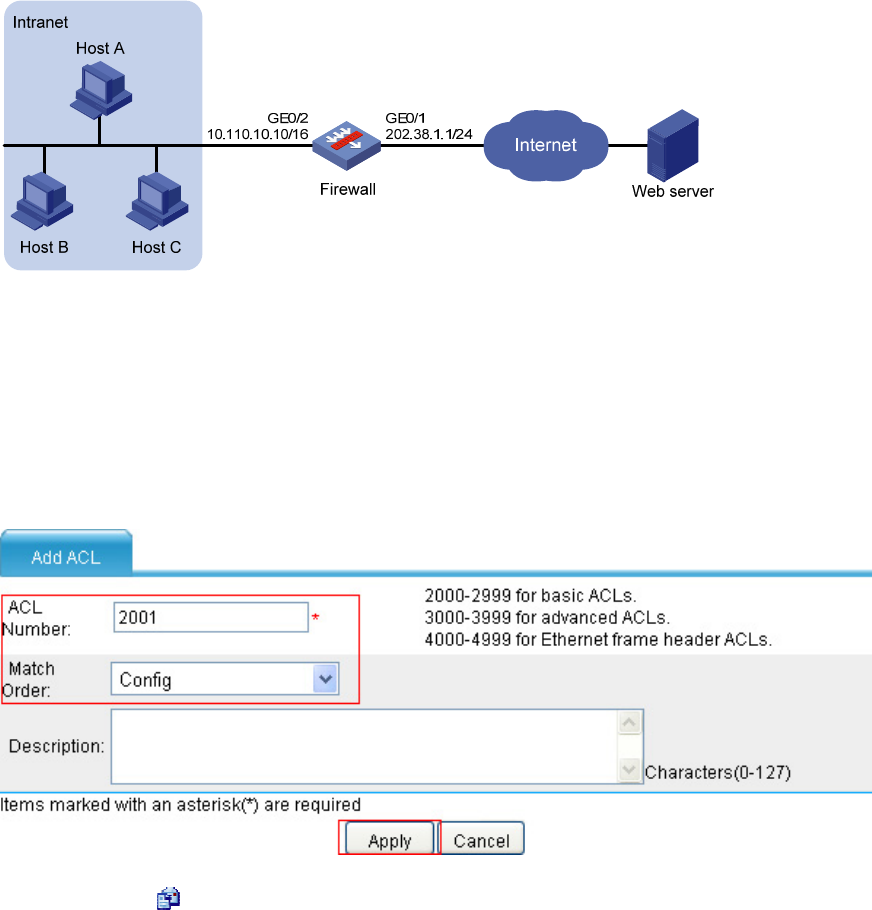

Figure 16 Network diagram
116B Configuring Firewall
1. Configure an ACL to permit internal users in subnet 10.110.10.0/24 to access the Internet:
a. From the navigation tree, select Firewall > ACL.
b. Click Add.
c. Enter 2001 in ACL Number, and click Apply.
Figure 17 Defining ACL 2001
d. Click the icon in the operation column corresponding to ACL 2001 to enter the ACL 2001
configuration page.
e. Click Add.
f. On the page that appears, select Permit in Operation. Select the Source IP Address box and
enter 10.110.10.0. Enter 0.0.0.255 in Source Wildcard.
g. Click Apply.
