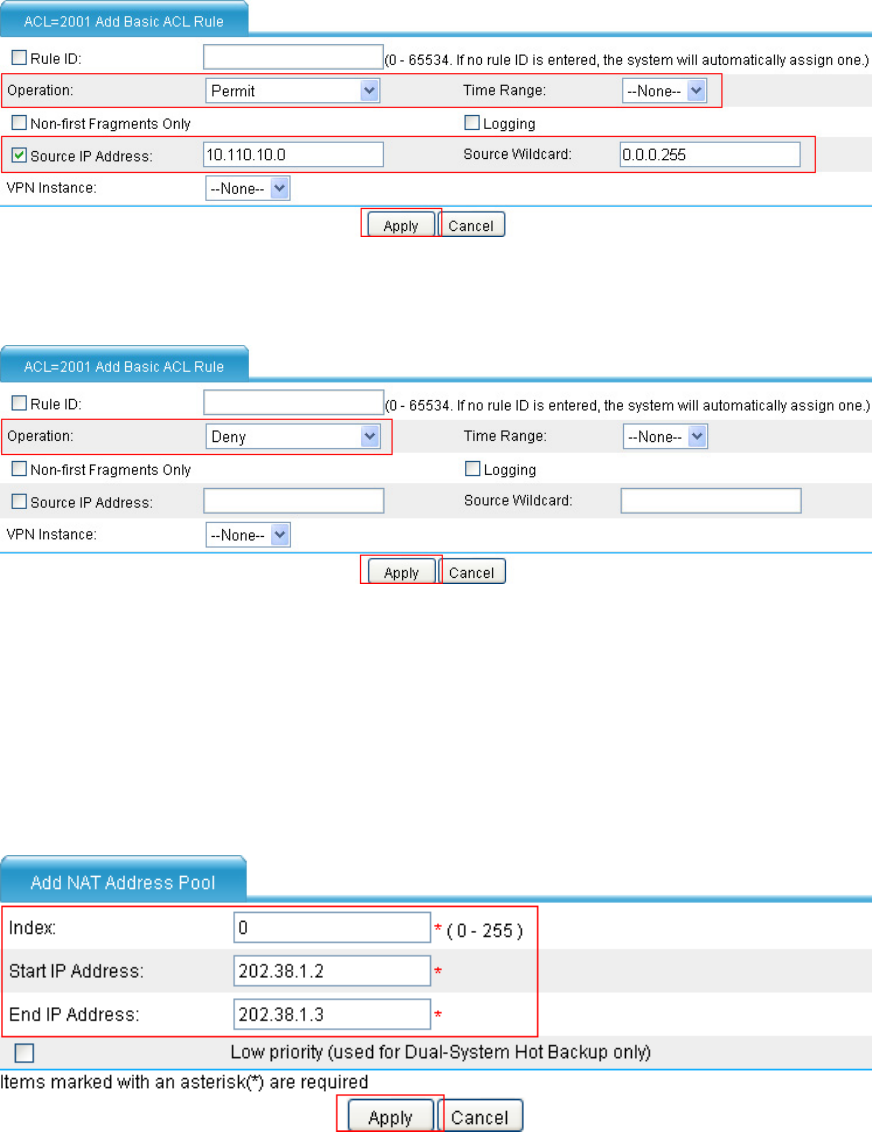

Figure 18 Configuring ACL 2001 to permit users on network 10.110.10.0/24 to access the Internet
h. Click Add on the ACL 2001. Select Deny for Operation, and click Apply.
Figure 19 Configuring ACL 2001 to prohibit other users to access the Internet
2. Configure a NAT address pool:
a. From the navigation tree, select Firewall > NAT Policy > Dynamic NAT.
b. Click Add.
c. On the page that appears as shown in 247HFigure 20, enter 0 in Index, enter 202.38.1.2 in Start
IP Address and enter 202.38.1.3 in End IP Address.
d. Click Apply.
Figure 20 Configuring NAT address pool 0
3. Configure dynamic NAT:
a. Click Add in the Dynamic NAT area.
b. On the page that appears, select GigabitEthernet0/1 for Interface and enter 2001 for ACL.
c. Select PAT for Address Transfer.
d. Enter 0 for Address Pool Index.
