24

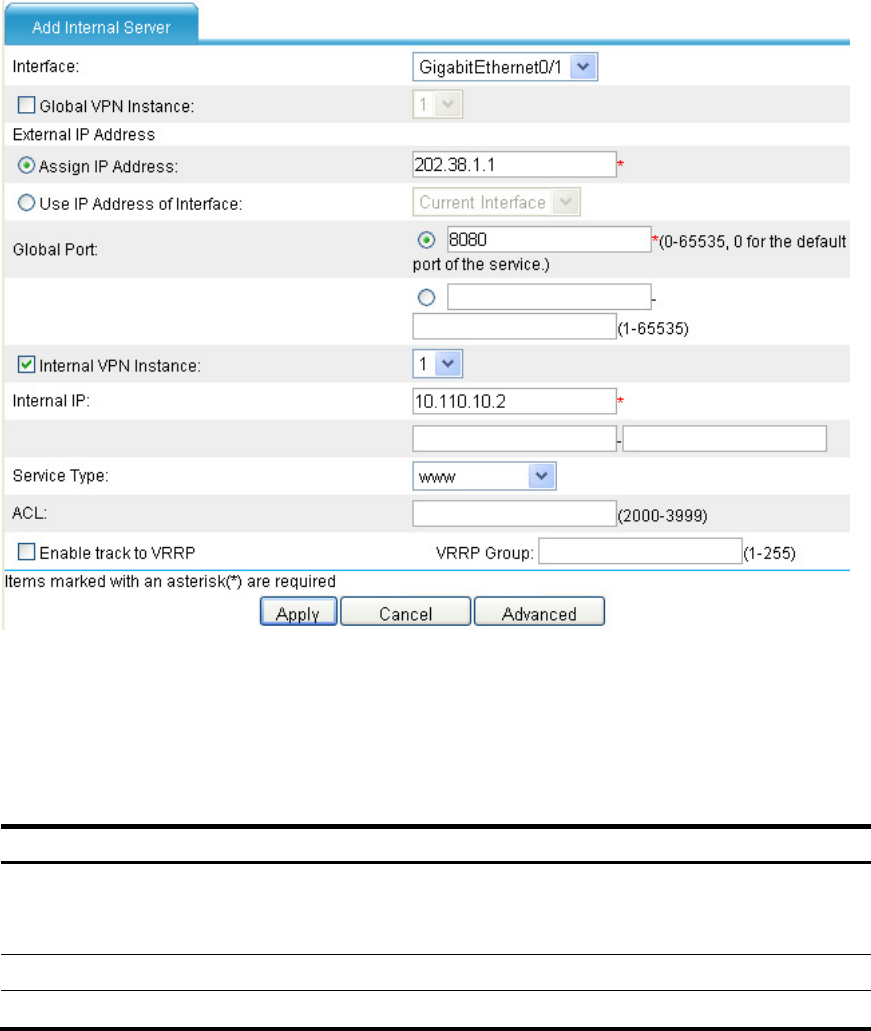

Figure 25 Configuring internal Web server 2
9B
Configuring NAT at the CLI
55BNAT configuration task list
Task Remarks
Configure address translation:
• 249HConfiguring static NAT
• 250HConfiguring dynamic NAT
Either is required.
251H
Configuring an internal server Required.
252H
Configuring DNS mapping Optional.
If the NAT configuration (address translation or internal server configuration) on an interface is changed,
save the configuration and reboot the device, to avoid the following problems:
• After you delete the NAT-related configuration, address translation can still work for sessions
already created.
• If you configure NAT when NAT is running, the same configuration may have different results
because of different configuration orders.
