Task Command Remarks
Clear all NAT-PT statistics information. reset natpt statistics Available in user view.
23B
NAT-PT configuration examples
78BConfiguring dynamic mapping on the IPv6 side
140BNetwork requirements
As shown in 272HFigure 32, Router B with IPv6 address 2001::2/64 on an IPv6 network wants to access
Router A with IPv4 address 8.0.0.2/24 on an IPv4 network, whereas Router A cannot actively access
Router B.
To meet the preceding requirements, you need to configure Firewall that is deployed between the IPv4
network and IPv6 network as a NAT-PT device, and configure dynamic mapping policies on the IPv6 side
on Firewall so that IPv6 hosts can access IPv4 hosts but IPv4 hosts cannot access IPv6 hosts.

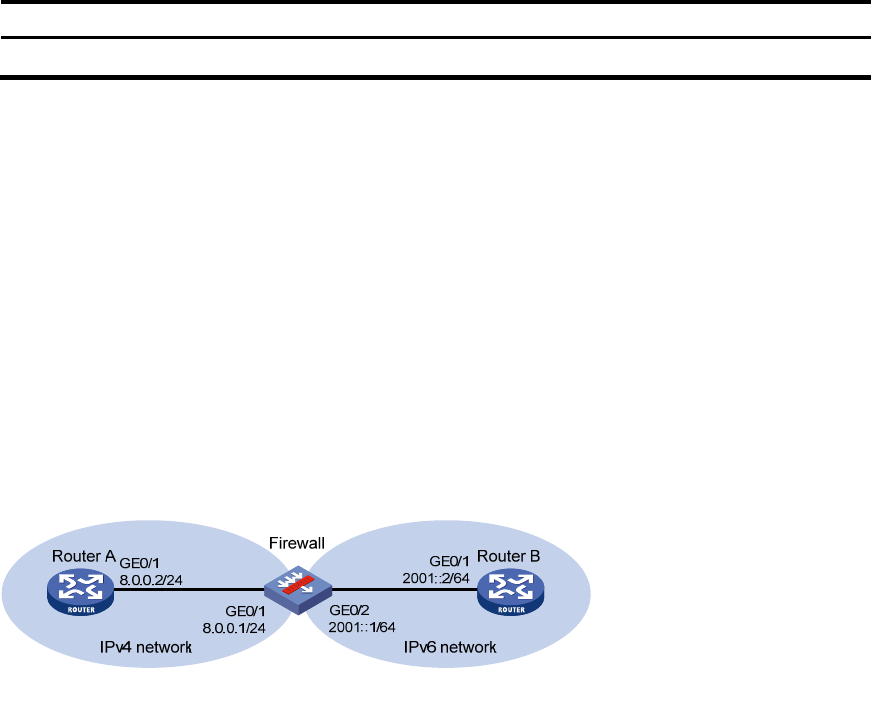

Figure 32 Network diagram
141BConfiguration procedure
1. Configure Firewall (NAT-PT device):
# Configure interface addresses and enable NAT-PT on the interfaces.
<Firewall> system-view
[Firewall] ipv6
[Firewall] interface gigabitethernet 0/1
[Firewall-GigabitEthernet0/1] ip address 8.0.0.1 255.255.255.0
[Firewall-GigabitEthernet0/1] natpt enable
[Firewall-GigabitEthernet0/1] quit
[Firewall] interface gigabitethernet 0/2
[Firewall-GigabitEthernet0/2] ipv6 address 2001::1/64
[Firewall-GigabitEthernet0/2] natpt enable
[Firewall-GigabitEthernet0/2] quit
# Configure a NAT-PT prefix.
[Firewall] natpt prefix 3001::
# Configure a NAT-PT address pool.
[Firewall] natpt address-group 1 9.0.0.10 9.0.0.19
# Associate the prefix with the address pool for IPv6 hosts accessing IPv4 hosts.
[Firewall] natpt v6bound dynamic prefix 3001:: address-group 1
2. Configure Router A on the IPv4 side:
# Configure an IP address for GigabitEthernet 0/1.
