4. Exchanging data.
The host and the FTP server exchange data through the established data connection.
36B
Configuring ALG in the Web interface
By default, ALG is enabled only for FTP.
92BConfiguration procedure
To enable ALG for protocols:
1. From the navigation tree, select Firewall > ALG.

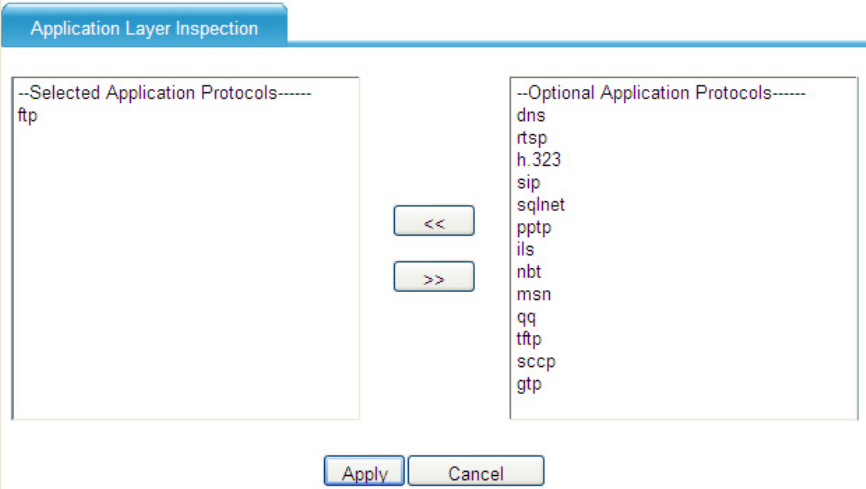

Figure 40 ALG configuration page
2. Add target application protocols to the Selected Application Protocols list to enable ALG for them.
By default, ALG is enabled for all protocols.
3. Click Apply.
93BFTP ALG configuration example
144BNetwork requirements
As shown in 281HFigure 56, a company uses the private network segment 192.168.1.0/24. The company
wants to provide FTP services using public IP address 5.5.5.10.
Configure NAT and ALG on the firewall so that hosts on the external network can access the FTP server
on the internal network.
