59

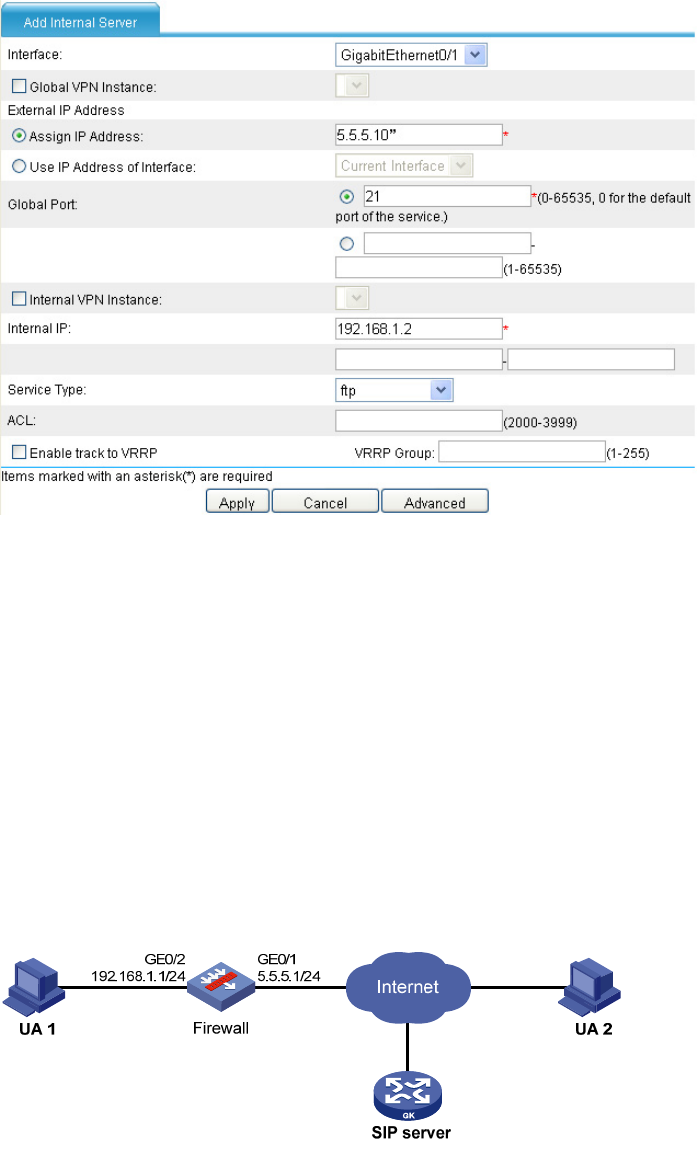

Figure 43 Adding an internal FTP server
94BSIP/H.323 ALG configuration example
H.323 ALG configuration is similar to SIP ALG configuration. This example discusses SIP ALG
configuration.
146BNetwork requirements
As shown in 282HFigure 57, a company uses the private network segment 192.168.1.0/24, and has four public
network addresses: 5.5.5.1, 5.5.5.9, 5.5.5.10, and 5.5.5.11. SIP UA 1 is on the internal network and SIP
UA 2 is on the outside network.
Configure NAT and ALG on the firewall so that SIP UA 1 and SIP UA 2 can communicate by using their
aliases, and SIP UA 1 selects an IP address from the range 5.5.5.9 to 5.5.5.11 when registering with the
SIP server on the external network.
Figure 44 Network diagram
147BConfiguration procedure
This section describes ALG configuration only, assuming that other required configurations on the server
and client have been done.
1. Enable ALG for SIP:
