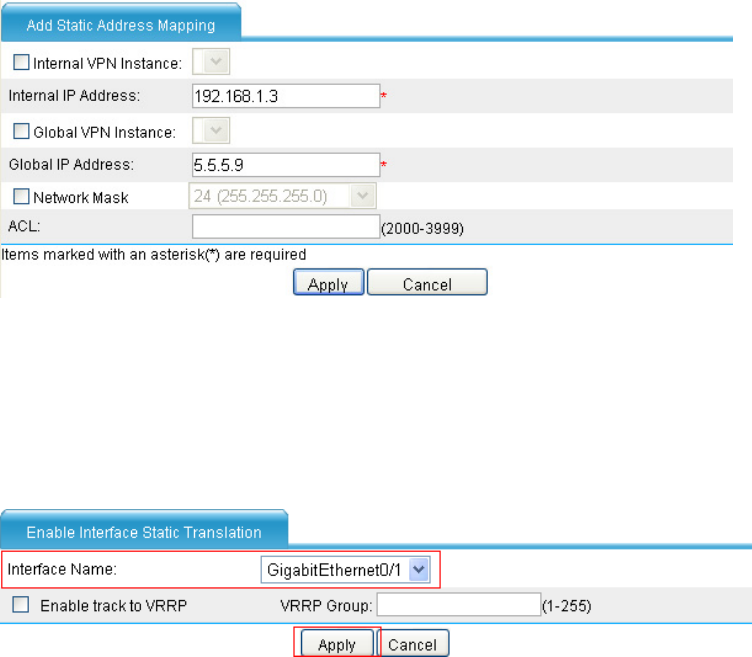

Figure 53 Adding a static address mapping
3. Configure static NAT for interface GigabitEthernet 0/1:
a. In the Interface Static Translation area, click Add.
b. Select GigabitEthernet0/1.
c. Click Apply.
Figure 54 Configuring static NAT for interface GigabitEthernet 0/1
4. Configure an internal WINS server:
a. Select Firewall > NAT > Internal Server from the navigation tree.
b. In the Internal Server area, click Add.
c. Select GigabitEthernet0/1.
d. Select 17(UDP) as the protocol type,
e. Enter 5.5.5.10 as the external IP address.
f. Enter 137 as the global port.
g. Enter 192.168.1.2 as the internal IP address.
h. Enter 137 as the internal port.
i. Click Apply.
