F3726, F3211, F3174, R5135, R3816-HP Firewalls and UTM Devices NAT and ALG Configuration Guide-6PW100

65

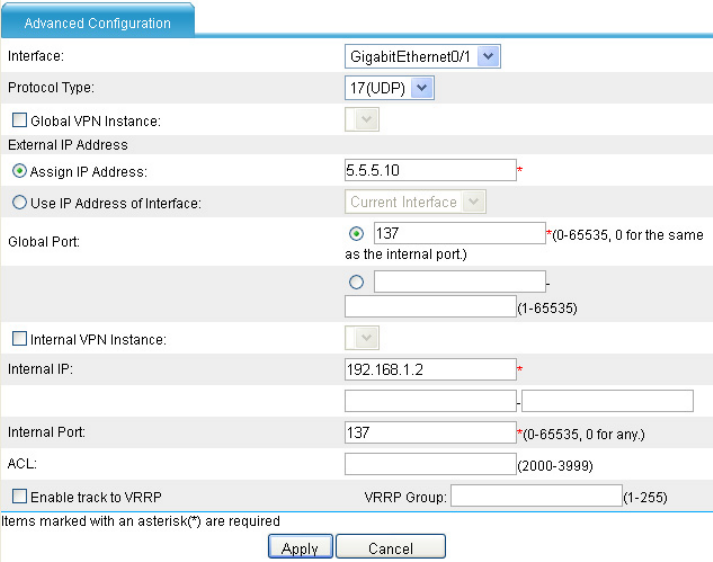

Figure 55 Configuring an internal WINS server
j. In the Internal Server area, click Add. Configure an interval WINS server, which is similar to
the configuration shown in
284HFigure 55.
k. Select GigabitEthernet0/1.
l. Select 17(UDP) as the protocol type,
m. Enter 5.5.5.10 as the external IP address.
n. Enter 138 as the global port.
o. Enter 192.168.1.2 as the internal IP address.
p. Enter 138 as the internal port.
q. Click Apply.
r. In the Internal Server area, click Add. Configure an interval WINS server, which is similar to
the configuration shown in
285HFigure 55.
s. Select GigabitEthernet0/1.
t. Select 6(TCP) as the protocol type.
u. Enter 5.5.5.10 as the external IP address.
v. Enter 139 as the global port.
w. Enter 192.168.1.2 as the internal IP address.
x. Enter 139 as the internal port.
y. Click Apply.
