Configuring ALG at the CLI
Ste
p
Command Remarks
1. Enter system view.
system-view N/A
2. Enable ALG.
alg { all | dns | ftp | gtp | h323 | ils |
msn | nbt | pptp | qq | rtsp | sccp |
sip | sqlnet | tftp }
Optional.
By default, ALG is enabled only for FTP.
96BFTP ALG configuration example
150BNetwork requirements
As shown in 286HFigure 56, a company uses the private network segment 192.168.1.0/24. The company
wants to provide FTP services using public IP address 5.5.5.10.
Configure NAT and ALG on the firewall so that hosts on the external network can access the FTP server
on the internal network.

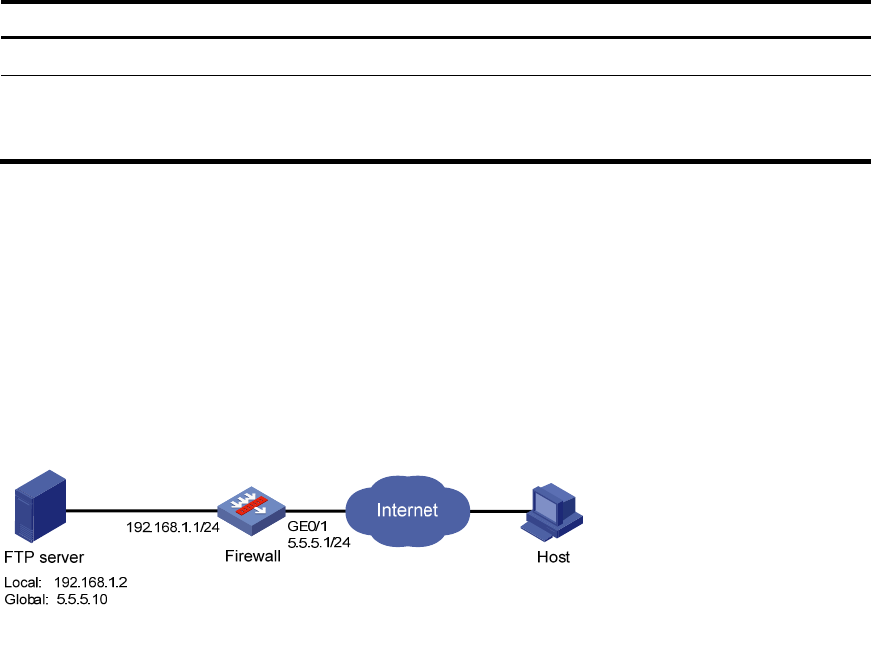

Figure 56 Network diagram
151BConfiguration procedure
This section describes ALG configuration only, assuming that other required configurations on the server
and client have been done.
# Enable ALG for FTP.
[Firewall] alg ftp
# Configure internal FTP server.
[Firewall] interface gigabitethernet 0/1
[Firewall-GigabitEthernet0/1] nat server protocol tcp global 5.5.5.10 ftp inside
192.168.1.2 ftp
97BSIP/H.323 ALG configuration example
H.323 ALG configuration is similar to SIP ALG configuration. This example discusses SIP ALG
configuration.
152BNetwork requirements
As shown in 287HFigure 57, a company uses the private network segment 192.168.1.0/24, and has four public
network addresses: 5.5.5.1, 5.5.5.9, 5.5.5.10, and 5.5.5.11. SIP UA 1 is on the internal network and SIP
UA 2 is on the external network.
Configure NAT and ALG on the firewall to enable SIP UA 1 and SIP UA 2 to communicate by using their
aliases, and to enable SIP UA 1 to select an IP address from the range 5.5.5.9 to 5.5.5.11 when
registering with the SIP server on the external network.
