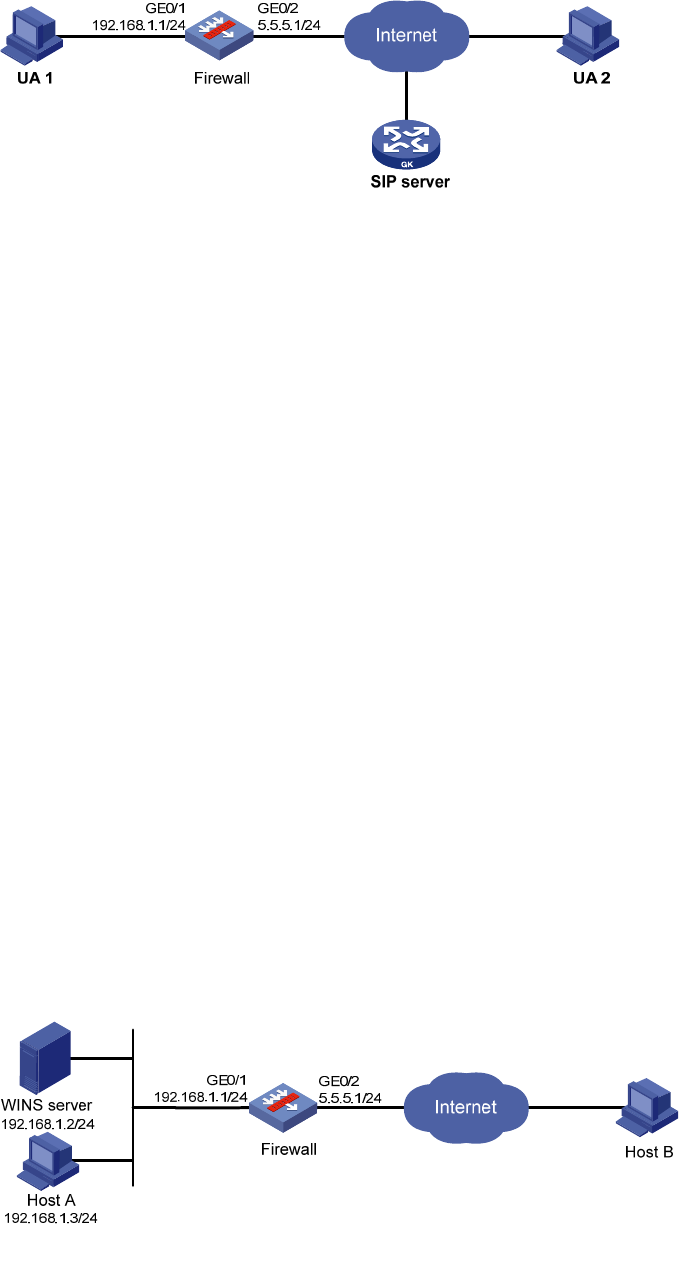

Figure 57 Network diagram
153BConfiguration procedure
This section describes ALG configuration only, assuming that other required configurations on the server
and client have been done.
# Configure the address pool and ACL.
<Firewall> system-view
[Firewall] nat address-group 1 5.5.5.9 5.5.5.11
[Firewall] acl number 2001
[Firewall-acl-basic-2001] rule permit source 192.168.1.0 0.0.0.255
[Firewall-acl-basic-2001] rule deny
[Firewall-acl-basic-2001] quit
# Enable ALG for SIP.
[Firewall] alg sip
# Configure NAT.
[Firewall] interface gigabitethernet 0/2
[Firewall-GigabitEthernet0/2] nat outbound 2001 address-group 1
98BNBT ALG configuration example
154BNetwork requirements
As shown in 288HFigure 58, a company using the private network segment 192.168.1.0/24 wants to provide
NBT services to the outside.
Configure NAT and ALG on the firewall so that Host A uses 5.5.5.9 as its external IP address, the WINS
server uses 5.5.5.10 as its external IP address, and Host B can access the WINS server and Host A by
using host names.
Figure 58 Network diagram

