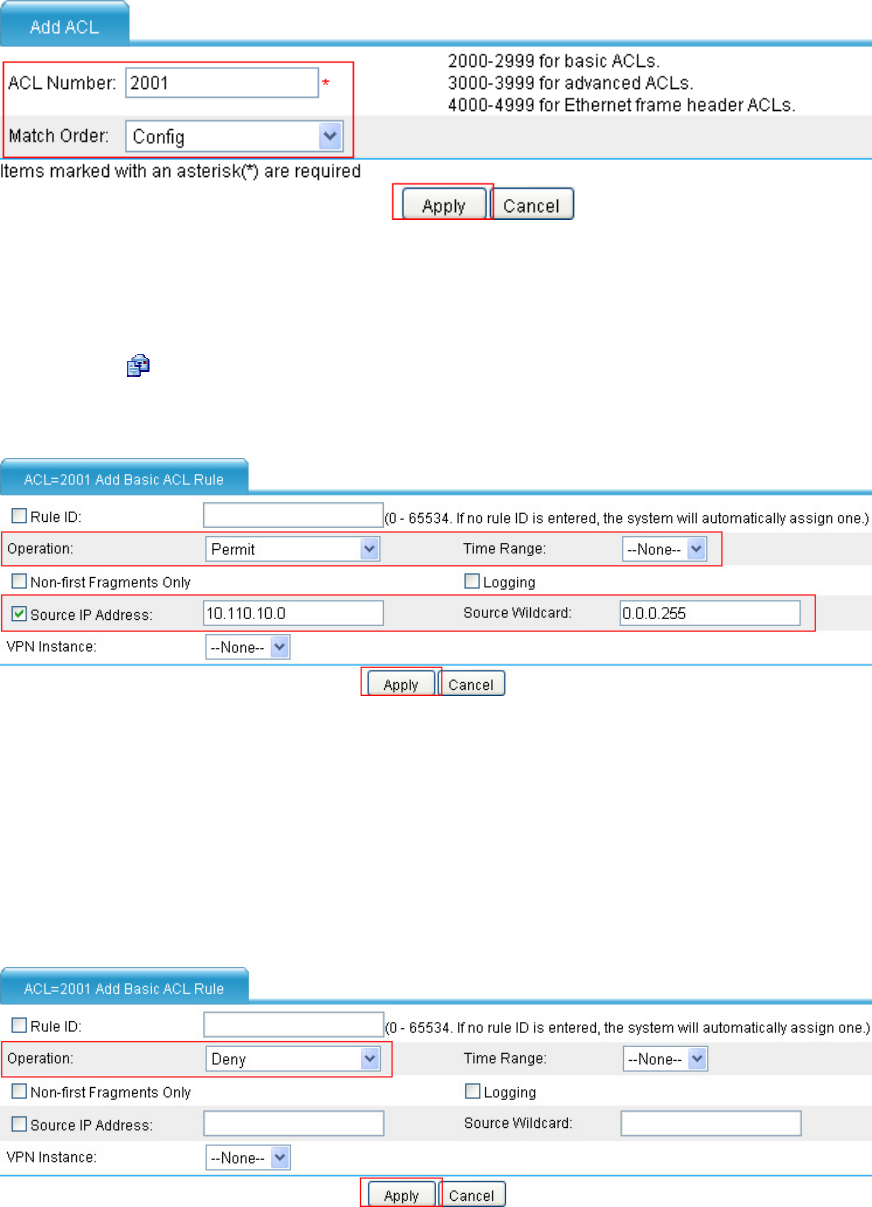

Figure 53 Define ACL 2001
• Type 2001 in ACL Number.
• Select Config in Match Order.
• Click Apply.
• Click the icon in the Operation column corresponding to ACL 2001 to enter the ACL 2001
configuration page, click Add, and then perform the following operations, as shown in Figure 54.
Figure 54 Co
nfigure ACL 2001 to permit users on network 10.110.10.0/24 to access the Internet
• Select Permit in Operation.
• Select the Source IP Address checkbox and then type 10 .110 .10 . 0 .
• Type 0.0.0.255 in Source Wildcard.
• Click Apply.
• Click Add on the ACL 2001 configuration page and perform the following operations, as shown
in Figure 55.
Figure 55 Configure ACL 2001
to prohibit other users to access the Internet
• Select Deny for Operation.
• Click Apply.
