# Configure a NAT address pool.
• Select Security > NAT > Dynamic NAT from the navigation tree, click Add, and then perform the
following operations, as shown in Figure 56.

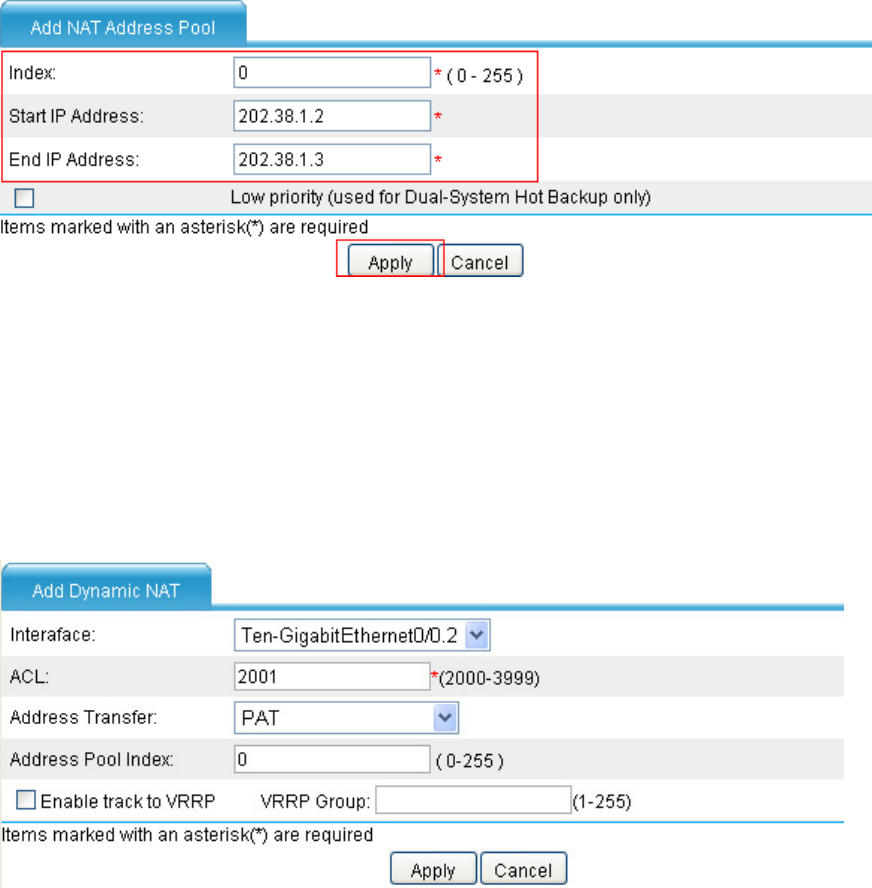

Figure 56 Configure NAT address
pool 0
• Type 0 in Index.
• Type 202.38.1.2 in Start IP Address.
• Type 202.38.1.3 in End IP Address.
• Click Apply.
# Configure dynamic NAT.
• Click Add in the Dynamic NAT field and perform the following operations, as shown in Figure 57.
Figure 57 Configure dynamic NAT
• Select Ten-GigabitEthernet0/1.2 for Interface.
• Type 2001 in ACL.
• Select PAT for Address Transfer.
• Type 0 in Address Pool Index.
• Click Apply.
Internal server configuration example
1. Network requirements
As illustrated in Figure 58, a c
ompany provides two Web servers and one FTP server for external users
to access. The internal network address is 10.110.0.0/16. The internal address for the FTP server is
