10.110.10.3/16, for the Web server 1 is 10.110.10.1/16, and for the Web server 2 is 10.110.10.2/16. The
company has three public IP addresses from 202.38.1.1/24 through 202.38.1.3/24. Specifically, the
company has the following requirements:
• External hosts can access internal servers using public address 202.38.1.1/24.
• Port 8080 is used for Web server 2.

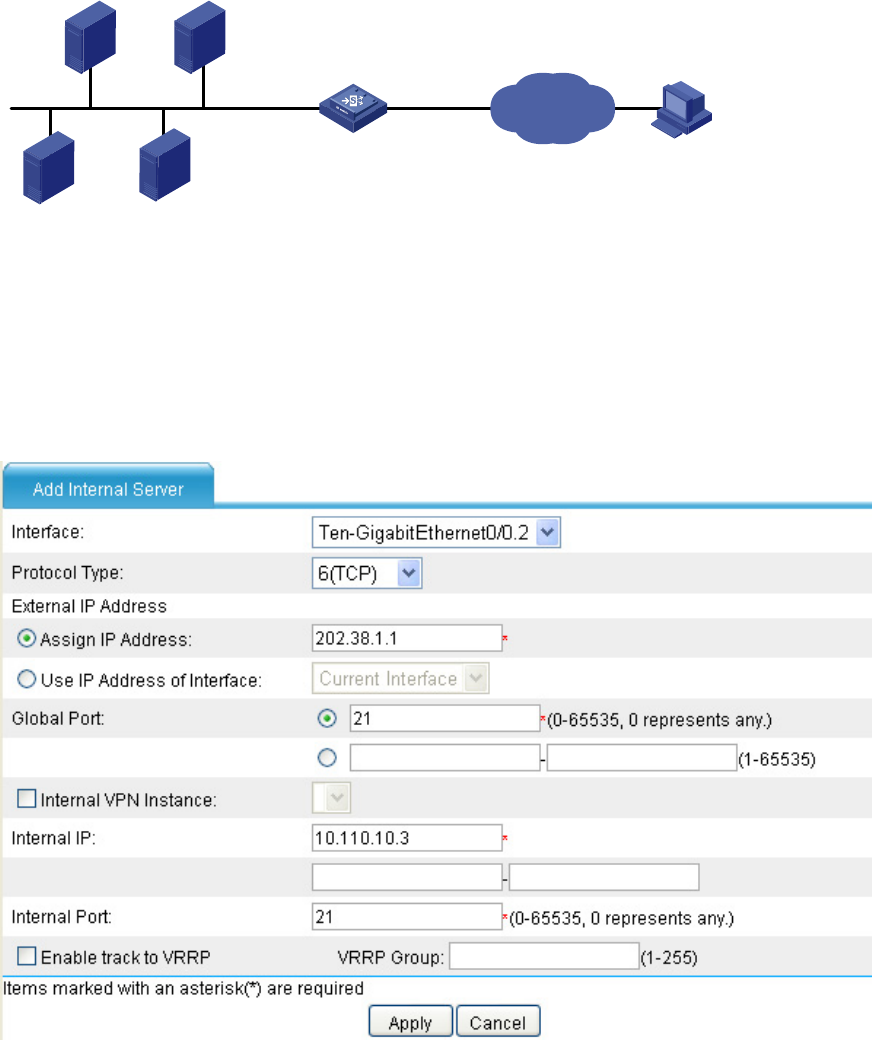

Figure 58 Internal server network diagram
2. Configuration procedure
# Configure the FTP server.
• Select Security > NAT > Internal Server from the navigation tree, click Add in the Internal Server
field, and then perform the following operations, as shown in Figure 59.
Figure 59 Configure an internal FTP server
• Select Ten-GigabitEthernet0/0.2 for Interface.
FTP server
10.110.10.3/16
Web server 1
10.110.10.1/16
Web server 2
10.110.10.2/16
SMTP server
10.110.10.4/16
Host
Internet
XGE0/0.1
10.110.10.10/16
XGE0/0.2
202.38.1.1/24
LB
