• Select 6(TCP) for Protocol Type.
• Click the radio button next to Assign IP Address, and then type 202.38.1.1 in Global IP.
• Select the upper radio button next to Global Port and type 21 .
• Type 10.110.10.3 in Internal IP.
• Type 21 in Internal Port.
• Click Apply.
# Configure the Web server 1.
• Click Add in the Internal Server field and perform the following operations, as shown in Figure 60.

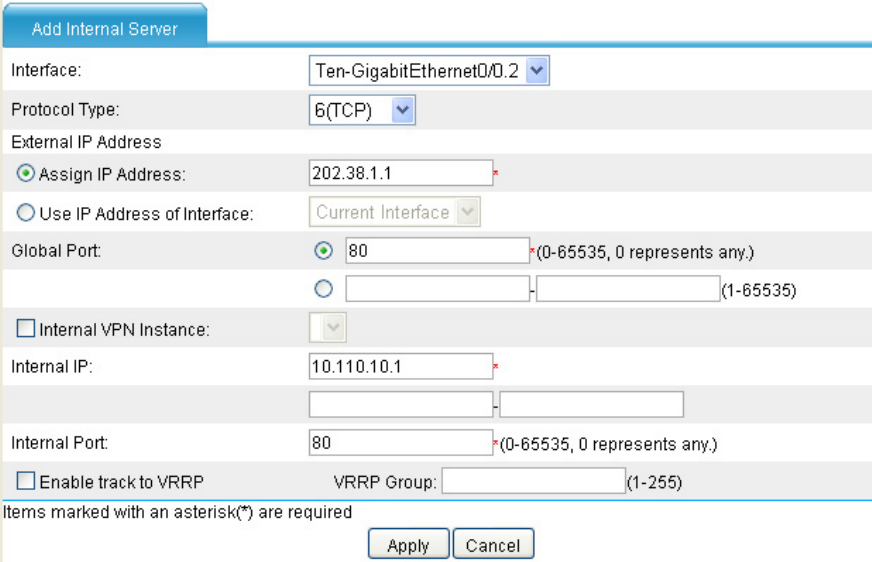

Figure 60 Configure internal Web server 1
• Select Ten-GigabitEthernet0/0.2 for Interface.
• Select 6(TCP) for Protocol Type.
• Click the radio button next to Assign IP Address, and then type 202.38.1.1 for Global IP.
• Select the upper radio button next to Global Port and type 80.
• Type 10.110.10.1 in Internal IP.
• Type 80 in Internal Port.
• Click Apply.
# Configure Web server 2.
• Click Add in the Internal Server field and perform the following operations, as shown in Figure 61.
