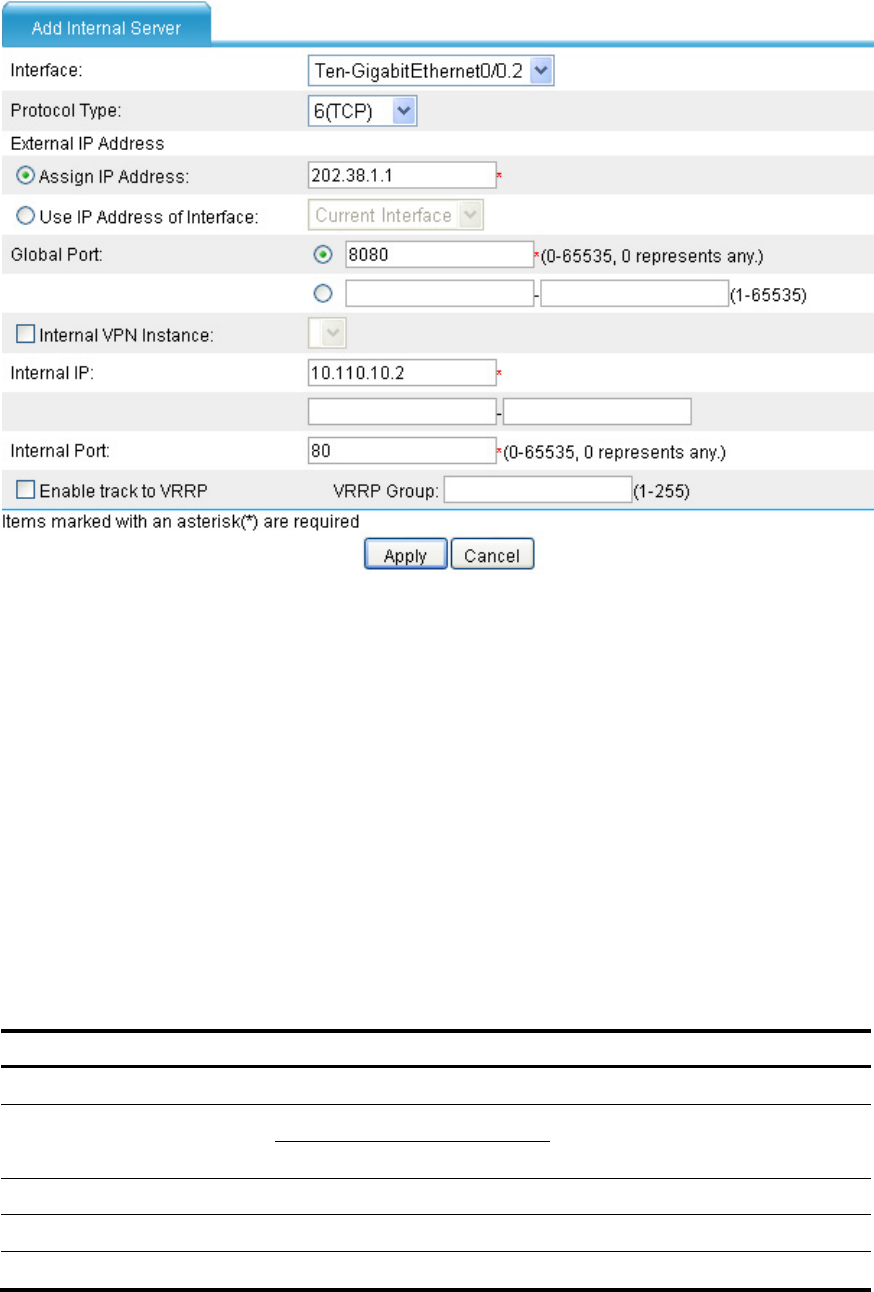

Figure 61 Configure internal Web server 2
• Select Ten-GigabitEthernet0/0.2 for Interface.
• Select 6(TCP) for Protocol Type.
• Click the radio button next to Assign IP Address, and then type 202.38.1.1 for Global IP.
• Select the upper radio button next to Global Port and type 8080.
• Type 10.110.10.2 in Internal IP.
• Type 80 in Internal Port.
• Click Apply.
Configuring NAT in the CLIs
NAT configuration task list
Complete the following tasks to configure NAT:
Task Remarks
Configuring NAT address pool Optional
Configuring address translation
Configuring static NAT
One of the tw
o is required
Configuring dynamic NAT
Configuring an internal server Required
Configuring DNS mapping Optional
Setting NAT connection limits Optional
