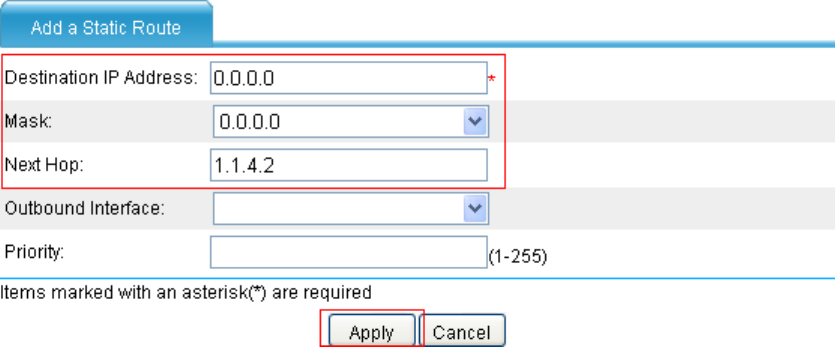

Figure 72 Configure a static route on Device A
• Type 0.0.0.0 as the destination IP address.
• Select 0.0.0.0 from the mask drop-down list.
• Type 1.1.4.2 as the nexthop.
• Click Apply.
# Configure static routes on Device B.
• Select Network > Static Routing from the navigation tree of Device B and click Add.
• Type 1.1.2.0 as the destination IP address.
• Select 255.255.255.0 from the mask drop-down list.
• Type 1.1.4.1 as the nexthop.
• Click Apply.
• Click Add.
• Type 1.1.3.0 as the destination IP address.
• Select 255.255.255.0 from the mask drop-down list.
• Type 1.1.5.6 as the nexthop.
• Click Apply.
# Configure a static route on Device C.
• Select Network > Routing Management > Static Routing from the navigation tree of Device C and
click Add.
• Type 0.0.0.0 as the destination IP address.
• Select 0.0.0.0 from the mask drop-down list.
• Type 1.1.5.5 a
s the nexthop.
• Click Apply.
Configuration verification
# Ping Host A on Host B (suppose the host runs Windows XP).
C:\Documents and Settings\Administrator>ping 1.1.2.2
Pinging 1.1.2.2 with 32 bytes of data:
