RIP configuration

NOTE:

The LB module supports configuring RIP only in the web interface.

RIP is a simple Interior Gateway Protocol (IGP), mainly used in small-sized networks, such as academic

networks and simple LANs. It is not applicable to complex networks.

RIP is widely used in practical networking because it is easy to implement, configure, and maintain.

Configuration prerequisites

• Configure the link layer protocol

• Configure an IP address on each interface, and make sure all adjacent routers are reachable to

each other

Configuration overview

Complete the following tasks to configure RIP:

Table 20 RIP configuration task list

Task Remarks

Enable RIP Configuring RIP globally

Required

Enable RIP on all interfaces.

Import static routes Configuring RIP globally

Optional

Configure RIP to redistribute static routes.

Configuring interface RIP

Optional

Configure the Work State, Version, and

Authentication Mode for RIP interfaces.

Configuring RIP globally

Select Network > RIP from the navigation tree to enter the RIP configuration page, as shown in Figure 74.

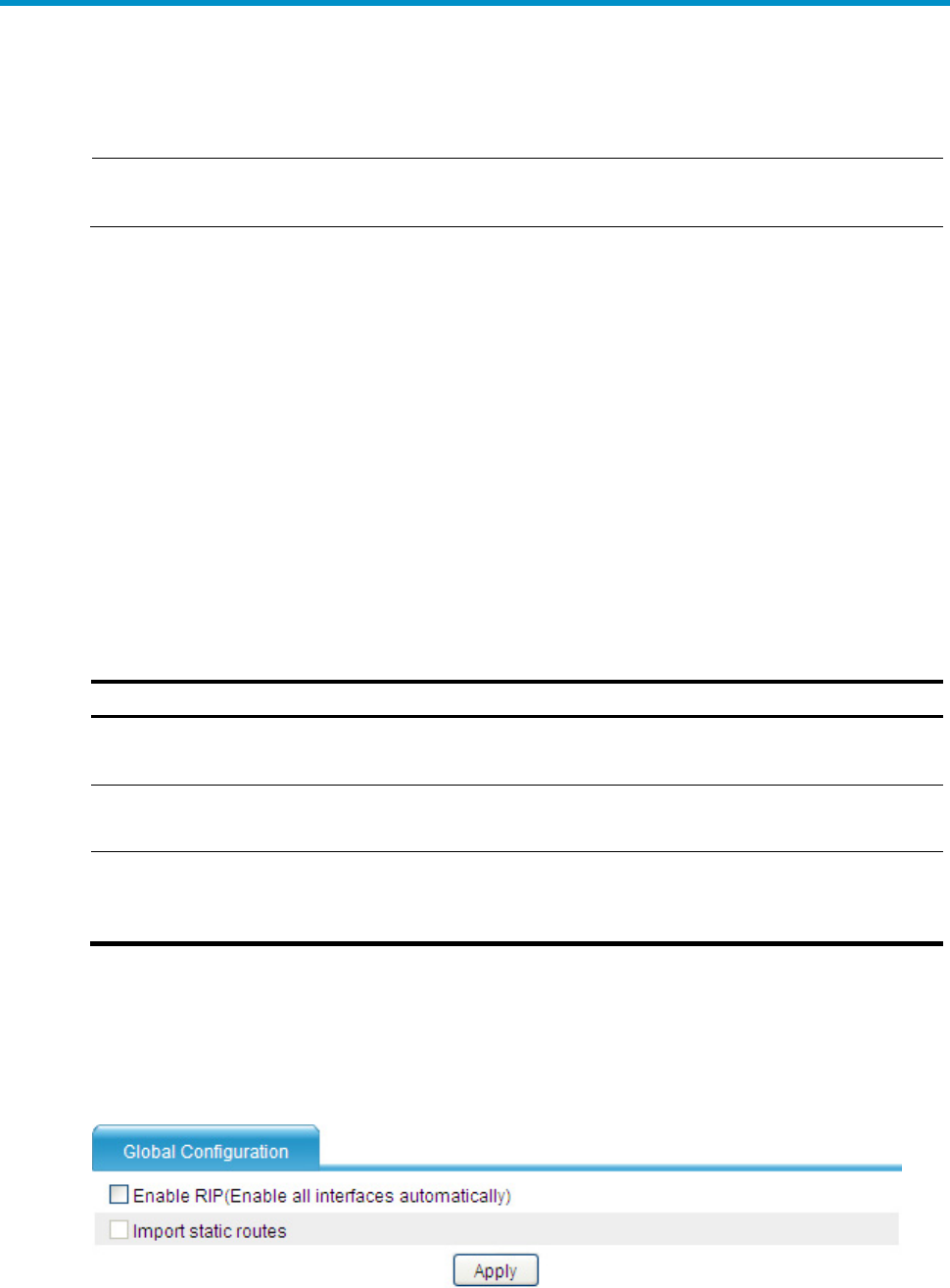

Figure 74 RIP global configuration page
