123

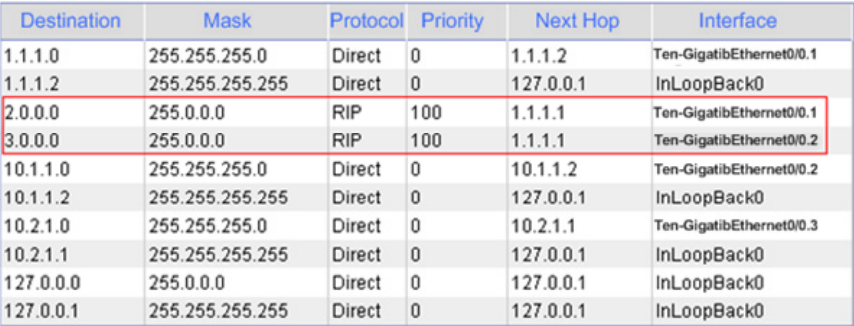

Figure 80 RIP configuration result II
Configuration guidelines
1. RIP multi-process is not supported on the web interface. Enabling RIP creates process 1, and
disabling RIP removes process 1.
2. After you enable RIP, it is enabled on all the interfaces automatically. Enabling RIP on a specific
interface is not supported on the web interface; instead, you can set the Work State of a RIP
interface to enable/disable the receiving/sending of RIP packets.
3. If the interface version is set to RIPv2, the automatic route summarization function is disabled.
