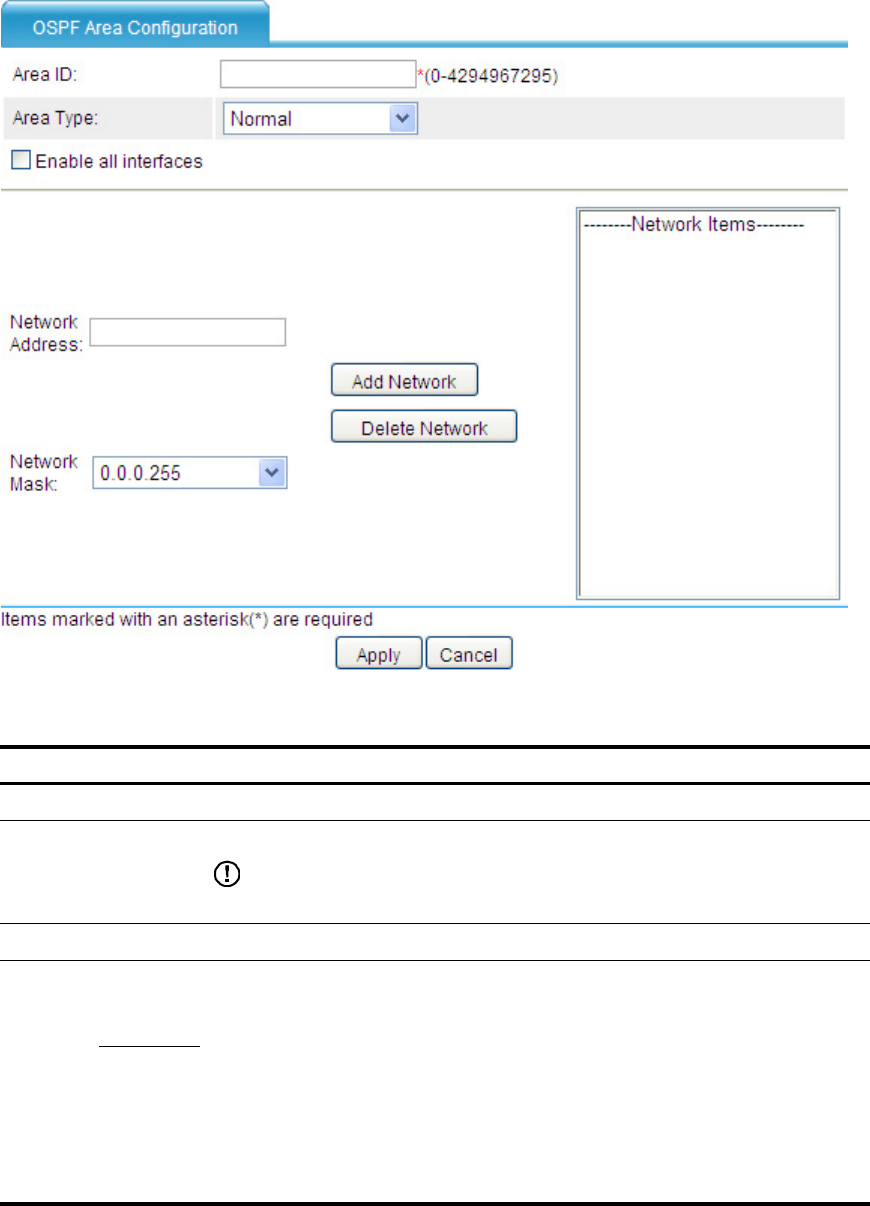

Figure 83 OSPF area configuration page
Table 25 OSPF area configuration items
Item Descri
p
tion
Area ID Type an area ID.
Area Type
Select an area type, including Normal, Stub, and NSSA.
IMPORTANT:
The type of a backbone area (with area ID 0) can only be configured as Normal.
Enable all interfaces Set whether to enable OSPF on all the interfaces.
Network
Items
Network
Address
Specify a network segment in the area, so as to enable OSPF on the interface
attached to the specified network segment.
After specifying a correct Network Address and Network Mask, click Add Network
to add the specified network segment to the area. You can select one or more
network segments from Network Items, and then click Delete Network to delete them.
This option is not available if the Enable all interfaces check box is selected; the
network address cannot be configured as a loopback or multicast address; the
network segment in the Network Items cannot overlap any existing network segment
in the area.
Network
Mask
Return to OSPF configuration task list.
