Item Descri
p
tion
State
Current state of the neighbor, which can be:
• Down, indicating the initial state of the neighboring relationship.
• Init, indicating a Hello packet is received from the neighbor before the neighbor is down, but
it does not contain the router ID. In such cases, bidirectional communication is not available.
• Attempt, which is available the neighbor of an NBMA network only. It indicates the router
receives no information from the neighbor, but it still attempts to contact the neighbor.
• 2-way, indicating the bidirectional communication is available, and the router ID can be
obtained from the Hello packet sent by the neighbor router.
• Exstart, indicating the master and slave between the router and the neighbor and the initial
DD packet sequence number are determined for exchanging DD packets.
• Exchange, indicating the router sends DD packets to its neighbor to describe its LSDB.
• Loading, indicating the router sends an LSR packet to its neighbor, requesting the newest LSA.
• Full, indicating adjacency has been established between the router and its neighbor.
Return to OSPF configuration task list.
OSPF configuration example
Network requirements
• All the devices run OSPF, and the AS is divided into three areas.
• Device A and Device B act as ABRs to forward routes between areas.
• Configure Area 1 as an NSSA area, and configure Device C as an ASBR to redistribute static routes
into the AS.

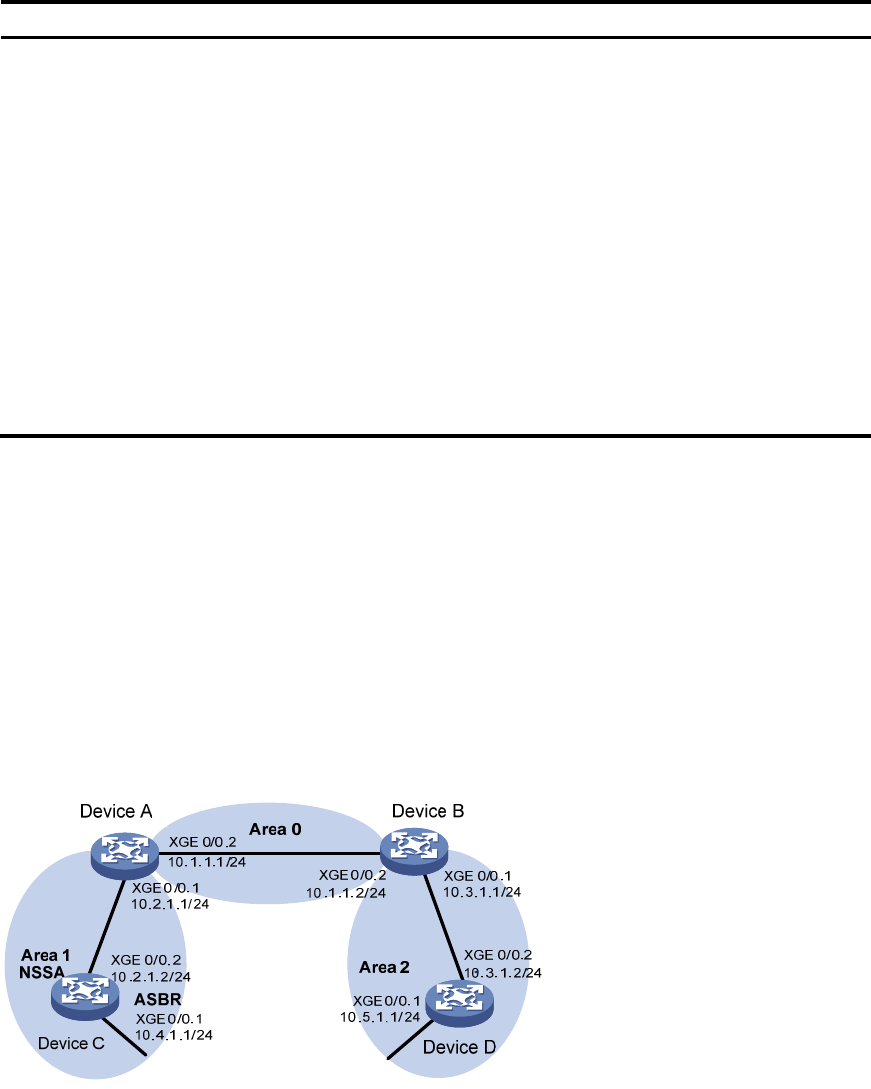

Figure 88 Network diagram for OSPF
Configuration procedure
1. Configure IP addresses for interfaces and configure security zones (omitted).
2. Configuring OSPF basic functions.
# Configure Device A.
• Select Network > OSPF from the navigation tree of Device A.
• Select the Enable OSPF check box, as shown in the following figure.
