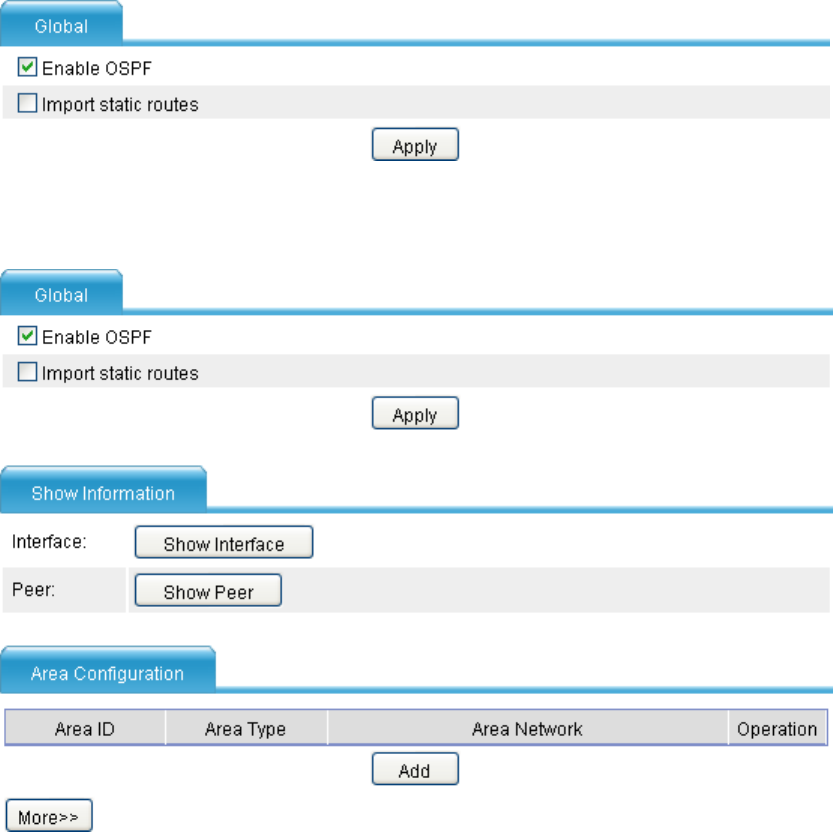

Figure 89 Enable OSPF
• Click Apply. After you enable OSPF, the following figure is displayed.
Figure 90 The web page displayed after OSPF is enabled
• Click Add on the Area Configuration tab and make the following configurations on Figure 91.
• Type 0 for Area ID.
• Select Normal for Area Type.
• Type 10.1.1.0 for Network Address, and select 0.0.0.255 for Network Mask. Then, click Add
Network.
• Click Apply.
