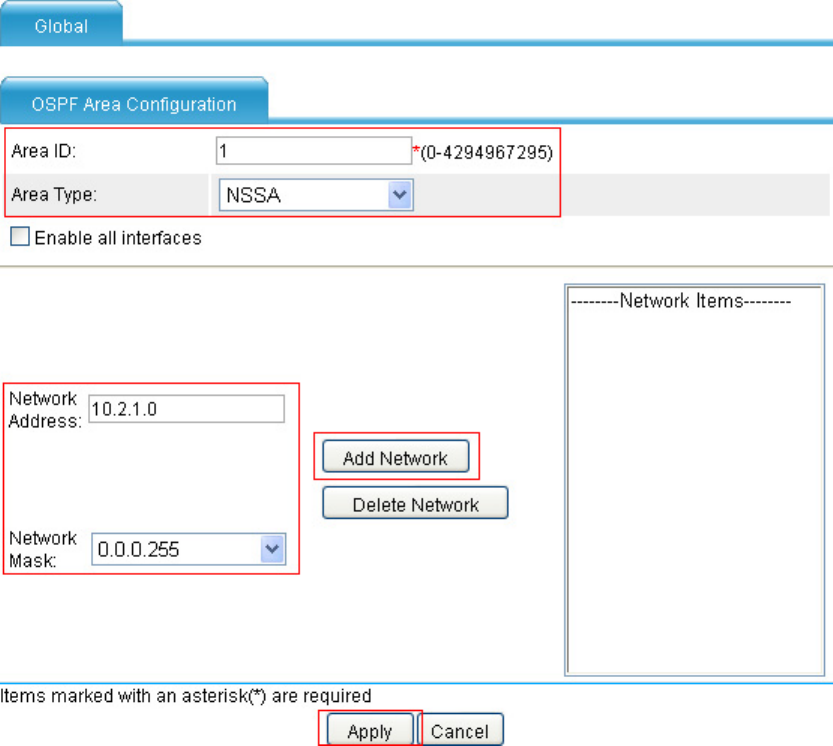

Figure 92 Configure area 1
# Configure Device B.
• Select Network > OSPF from the navigation tree of Device B.
• Select the Enable OSPF check box.
• Click Apply.
• Click Add on the Area Configuration tab.
• Type 0 for Area ID.
• Select Normal for Area Type.
• Type 10.1.1.0 for Network Address, and select 0.0.0.255 for Network Mask. Then, click Add
Network.
• Click Apply.
• Click Add on the Area Configuration tab.
• Type 2 for Area ID.
• Select Normal for Area Type.
• Type 10.3.1.0 for Network Address, and select 0.0.0.255 for Network Mask. Then, click Add
Network.
• Click Apply.
