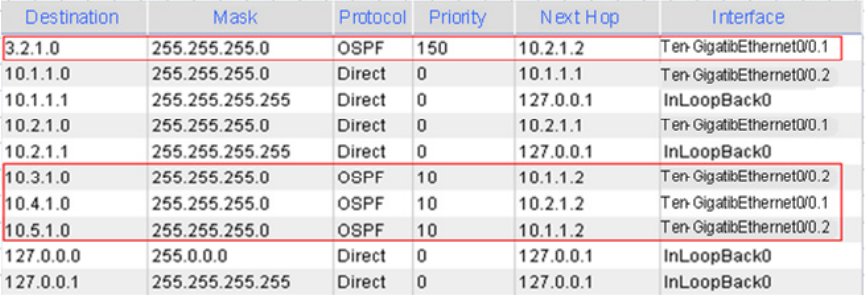

# Display the routing table of Device A.
Select Network > Routing Info from the navigation tree of Device A. The OSPF routes 3.2.1.0/24,
10.3.1.0/24, 10.4.1.0/24 and 10.5.1.0/24 that are learned after OSPF is enabled are displayed in the
routing table, as shown in Figure 94.
Figure 94 OSPF configur
ation result II
Configuration guidelines
1. OSPF multiprocess is not supported on the web interface. Enabling OSPF creates process 1, and
disabling OSPF removes process 1.
2. After OSPF is enabled, the router ID for route management is used.
3. The OSPF interface list displays all interfaces enabled with OSPF.
4. To configure OSPF packet authentication in an area, configure the same authentication mode
(non-authentication, simple authentication or MD5 authentication) on all the routers of the area.
The authentication mode and password for interfaces attached to a network segment must be
identical. In the web interface configuration, the authentication mode of the interface first
configured with authentication information is taken as the authentication mode of the area.
