R3204P16-HP Load Balancing Module Network Management Configuration Guide-6PW101

160

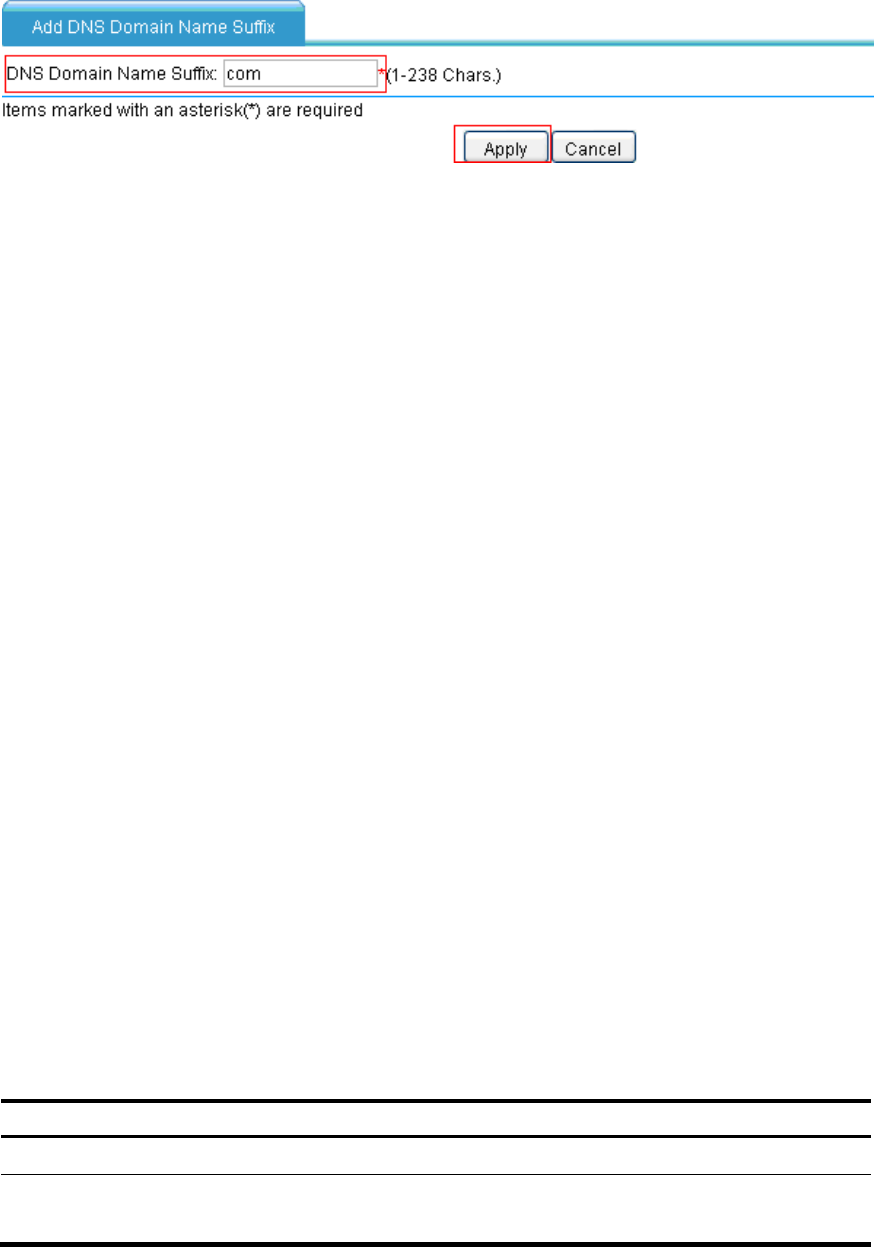

Figure 122 Configure the domain name suffix
• Type com in DNS Domain Name Suffix.
• Click Apply.
3. Verification
# O n t h e D N S c l i e n t , p i n g t h e h o s t ( 3 .1.1.1) .
[LB] ping host
Trying DNS resolve, press CTRL_C to break
Trying DNS server (2.1.1.2)
PING host.com (3.1.1.1):
56 data bytes, press CTRL_C to break
Reply from 3.1.1.1: bytes=56 Sequence=1 ttl=126 time=3 ms
Reply from 3.1.1.1: bytes=56 Sequence=2 ttl=126 time=1 ms
Reply from 3.1.1.1: bytes=56 Sequence=3 ttl=126 time=1 ms
Reply from 3.1.1.1: bytes=56 Sequence=4 ttl=126 time=1 ms
Reply from 3.1.1.1: bytes=56 Sequence=5 ttl=126 time=1 ms
--- host.com ping statistics ---
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 1/1/3 ms
Configuring DNS in the CLIs
Configuring the IPv4 DNS client
Configuring static domain name resolution
Configuring static domain name resolution refers to specifying the mappings between host names and
IPv4 addresses. Static domain name resolution allows applications such as Telnet to contact hosts by
using host names instead of IPv4 addresses.
Follow these steps to configure static domain name resolution:
To do… Use the command…
Remarks
Enter system view system-view ––
Configure a mapping between a host
name and an IPv4 address
ip host hostname ip-address
Required
Not configured by default.
